Laser Etching Steel: A Guide To Precision Craftsmanship

Laser etching steel is a modern technique that allows for high precision in creating detailed designs and markings on metal surfaces. This process utilizes advanced laser technology, making it ideal for both artistic projects and industrial applications. With the right setup, steel can be etched with remarkable accuracy, resulting in stunning visuals and durable markings.

Table of Contents:

1. Laser Etching Fundamentals
2. Types of Lasers Used in Etching
3. Preparation and Safety Measures
4. Materials Compatible with Laser Etching
5. Laser Etching Process
6. Applications of Laser Etching
7. Technical Aspects of Laser Etching
8. Quality and Efficiency
9. Differentiating Laser Etching from Engraving
10. Adding a Unique Touch
11. Frequently Asked Questions



Understanding how to effectively use laser etching on steel requires knowledge of the various lasers available and the different materials they can work with. Safety measures are also essential, as the process generates fumes and requires protective equipment. With its ability to deliver unique and customized results, laser etching has become an invaluable tool in manufacturing, art, and beyond.

Key Takeaways

• Laser etching offers high precision and durability on steel surfaces.
• Proper preparation and safety measures are crucial for effective etching.
• This technique allows for creative designs that enhance both functionality and aesthetics.

1) Laser Etching Fundamentals

Laser etching is a precise method used to create permanent marks on steel surfaces. It utilizes laser technology that can produce high-contrast designs or text. Understanding its fundamentals is key to appreciating its benefits in industrial and creative applications.

Understanding Laser Etching

Laser etching works by focusing a laser beam onto the surface of steel. The energy from the laser causes localized heating, which melts or vaporizes the material. Different types of lasers, such as fiber lasers, operate at specific wavelengths that increase efficiency and effectiveness in etching. Most commonly, the wavelength of a fiber laser is around 1090 nm, making it suitable for metals like steel.

This process results in a permanent mark that remains clear and robust over time. The heat from the etching creates a contrasting surface finish, enhancing visibility. This technique can produce intricate designs or easily readable text, making it versatile for various applications, from industrial labeling to decorative art.

Advantages of Laser Etching on Steel

Laser etching offers numerous benefits when applied to steel. One primary advantage is precision. The technology allows for accurate detailing with minimal margin for error. This ensures that even complex designs can be replicated with consistency.

Durability is another significant benefit. The marks created through laser etching are resistant to wear and environmental factors, making them ideal for items exposed to harsh conditions. They do not fade or wear away like traditional printing methods.

Additionally, laser etching is fast and cost-effective. Compared to other marking methods, it reduces material waste and operational expenses. Its ability to produce high-contrast, permanent markings ensures a clear identity for products, enhancing branding and traceability in manufacturing processes.

2) Types of Lasers Used in Etching

Different types of lasers are used for etching, each with specific characteristics that affect their performance on steel. These lasers vary in terms of power, material compatibility, and etching speed. Understanding these types helps in choosing the right laser for specific etching needs.

Fiber Lasers

Fiber lasers are highly efficient for etching steel due to their high power density. They use a fiber optic cable to generate the laser beam, which makes them compact and reliable.

These lasers offer fast processing speeds, allowing for quick markings on metal surfaces. They are ideal for creating precise and detailed designs.

Additionally, fiber lasers are known for their low maintenance costs. They are suitable for both industrial and artistic applications.

CO2 Lasers

CO2 lasers are one of the most common types used in etching applications. They primarily use a gas mixture of carbon dioxide, nitrogen, and helium to produce the laser beam.

While CO2 lasers work exceptionally well with non-metals, they can etch metals too, but with reduced efficiency compared to fiber lasers.

These lasers provide a good balance of speed and quality. They are often used for larger projects or when detailed etching is less critical.

Nd Lasers

Nd lasers use a solid-state crystal as a laser source, making them powerful and durable. They are capable of producing short, high-energy pulses that can effectively etch steel surfaces.

These lasers are particularly useful for deep engraving jobs, where precision is crucial. Nd lasers can also be adjusted for different laser power settings to suit various materials.

Their versatility makes them a popular choice in both industrial and artistic applications.

UV Lasers

UV lasers utilize ultraviolet light and are excellent for etching small, detailed designs on steel. These lasers are less common but offer unique benefits such as minimal heat-affected zones.

This feature is critical when working with sensitive materials or intricate designs, as it reduces the risk of warping.

UV lasers can produce high-quality marks with fine detail and are ideal for applications requiring high precision.

Green Lasers

Green lasers operate at a wavelength of about 532 nm, making them suitable for a range of materials, including steel. They produce a visible light output, which is beneficial for alignment and focusing during the etching process.

While not as common as other types, green lasers are useful in niche applications. They can provide a unique finish that may be desirable in specific projects.

These lasers can also achieve high precision and fine detail, similar to UV lasers, but are generally more versatile in terms of material compatibility.

3) Preparation and Safety Measures

Proper preparation and safety measures are crucial for effective laser etching on steel. This ensures a safe working environment and enhances the quality of the finished product. Attention to detail in material preparation and the use of appropriate personal protective equipment (PPE) significantly impacts the etching process.

Material Preparation

Before starting the laser etching process, it is vital to prepare the steel surface effectively. Begin by cleaning the metal to remove any dirt, grease, or debris. This ensures that the laser can etch the surface uniformly.

Cleaning methods:

• E-coating: It protects the metal from corrosion but may require removal before etching.
• Powder coating: If present, it should be stripped off to ensure the laser interacts directly with the steel.
• Shotblasting: This method creates a rough surface, enhancing the laser's ability to etch and improving adhesion for any additional finishes.

Preparing the surface correctly leads to clearer and more precise etching results, minimizing imperfections.

Personal Protective Equipment

Using the right personal protective equipment (PPE) is essential for anyone operating a laser engraver. The primary safety gear includes:

• Safety glasses: These protect the eyes from laser reflection and debris.
• Gloves: Heat-resistant gloves should be worn to shield hands from hot surfaces post-etching.
• Protective clothing: Long sleeves and pants made from non-flammable material are recommended.

In addition, ensure good ventilation when working with materials that may generate fumes. Proper PPE not only protects the operator but also enhances the overall safety of the workspace. Following these guidelines will promote a safe and efficient etching process.

4) Materials Compatible with Laser Etching

Laser etching works best with specific materials, each having unique properties that influence the etching process. Understanding which metals are compatible is essential for achieving desired results.

Steel and Stainless Steel

Steel and stainless steel are among the most common materials used in laser etching. These metals respond well due to their thermal properties, allowing for precise etching without warping.

• Carbon steel is frequently used because it is cost-effective and provides excellent results.
• Stainless steel, especially grades like 304 and 316, is popular for its corrosion resistance and strength.

Both types can yield intricate designs and text, making them suitable for various applications, from industrial parts to personalized items. The etching depth can be adjusted based on the power of the laser and the speed of the process.

Aluminum and Anodized Aluminum

Aluminum and anodized aluminum are also excellent candidates for laser etching. Aluminum is lightweight yet strong, making it perfect for both industrial and artistic applications.

Anodized aluminum features a protective oxide layer which can be etched away to create distinct contrasts. This process highlights the base metal’s finish, enhancing the aesthetic appeal.

• Many companies use aluminum for signage, parts, and decorative items.
• The laser can achieve detailed markings and designs without damaging the integrity of the material.

Both types can be easily marked for identification, branding, or decorative purposes.

Other Metals and Materials

Several other metals and materials can be effectively etched with lasers. These include:

• Copper: Known for its good conductivity, copper can be etched to create intricate designs suitable for electrical components.
• Brass and Bronze: These alloys are popular in decorative applications due to their attractive finishes.
• Titanium: Highly resistant to corrosion, titanium can be marked with precision, often used in medical and aerospace fields.
• Magnesium and Iron: While less common, these materials can also be etched, though considerations for their thermal properties and melting points must be taken into account.

Each material's unique properties will dictate the best laser settings for optimal results.

5) Laser Etching Process

The laser etching process involves several important steps to ensure high-quality results when marking steel. This section covers setting up the laser engraver, proper calibration, and the workflow needed for effective etching.

Setting Up the Laser Engraver

Setting up the laser engraver is the first step in the laser etching process. The user should start by placing the steel piece securely on the machine bed. Proper alignment is important for accurate marking.

Next, the operator needs to select the right settings on the laser machine. This includes adjusting the power and speed of the laser beam. Higher power settings can produce deeper etching, while speed impacts how quickly the process occurs.

Additional factors include ensuring that the focus of the laser beam is correct. A well-focused beam provides precise markings, avoiding any distortion on the steel surface.

Calibration for Optimal Performance

Calibration plays a key role in achieving the best results. The user should start by running a test etch on a scrap piece of steel. This allows for adjustments to settings like power, energy, and speed based on the observed outcome.

The laser machine must be calibrated regularly to maintain its accuracy. This involves checking the alignment of the laser beam and the focus lens. An unfocused beam can lead to poor-quality etching and unnecessary material loss.

Using software tools that accompany the laser machine can help monitor and adjust settings. Many machines offer automated calibration features, simplifying this process for better efficiency and accuracy.

The Etching Workflow

The etching workflow follows a structured approach. First, the operator designs the desired pattern or text using graphic design software. This design is then transferred to the laser machine.

Once the setup and calibration are complete, the operator initiates the laser marking process. The laser beam interacts with the surface of the steel, removing material to create the intended design.

Throughout the process, it’s critical to monitor the machine. Observing the speed and power of the laser ensures consistency and quality. After the etching is complete, the operator inspects the work to confirm that it meets the desired specifications before removing the piece.

6) Applications of Laser Etching

Laser etching is widely used across various sectors, offering precise marking solutions for both industrial and custom projects. Its versatility allows for the creation of detailed designs, logos, and identifying information, such as serial numbers and barcodes.

Industrial Marking

In industrial settings, laser etching is crucial for marking equipment and machinery. It allows for the application of logos, serial numbers, and important data directly onto metal surfaces. The process ensures durability and resistance to wear, making it ideal for harsh environments.

Marking components with laser etching enhances traceability. This is essential for compliance with regulations and quality assurance in manufacturing. Common applications include identifying parts in the automotive and aerospace sectors, where precise information is vital for safety and performance.

Custom Design Work

Custom design is another significant application of laser etching. This technology enables designers to personalize items with intricate artwork, logos, or text. Each design can be created with high precision, allowing for both small-scale and large-scale production.

Items such as personalized gifts, awards, and promotional products benefit from laser etching. The capability to incorporate data matrix codes or QR codes makes it possible to link physical products to digital information. This enhances marketing strategies and customer engagement.

Medical and Aerospace Applications

The medical and aerospace industries heavily rely on laser etching for high-quality marking. Medical devices require clear identification, often including serial numbers and compliance codes. Laser etching provides a safe and permanent way to label these devices.

In aerospace, the need for precise identification is crucial. Components must be marked with data matrix codes to ensure traceability. This ensures that parts can be tracked throughout their lifecycle, enhancing safety and reliability under strict regulations.

Automotive Part Identification

In the automotive industry, laser etching is extensively used for part identification. Manufacturers mark components with serial numbers and barcodes to facilitate inventory management and enhance traceability.

Laser etching allows for the marking of various materials used in vehicles, including metals and plastics. This technology's durability is essential, as markings must withstand harsh operating conditions. Efficient tracking of parts reduces errors and helps maintain quality.

In summary, laser etching plays a critical role in sectors ranging from manufacturing to design. Its precise, durable marking capabilities make it indispensable for various applications.

7) Technical Aspects of Laser Etching

Laser etching involves specific technical parameters that influence the final outcome. Understanding how these parameters work helps in achieving the desired results on metal surfaces, particularly steel. Key areas include the laser settings, material response, and precision control.

Understanding Laser Parameters

Laser parameters such as power, speed, and frequency play crucial roles in the etching process. Higher power levels result in deeper etching, while lower power may create surface markings. The speed of the laser movement affects the quality and detail of the etching. A slower speed often allows for better detail but can lead to excessive heat, potentially damaging the metal.

Furthermore, the wavelength of the laser can influence its ability to interact with different materials. For example, fiber lasers are typically better suited for metal etching due to their focus on the right wavelength for metal absorption. These factors must be finely tuned to achieve optimal results.

Material Response to Laser Etching

Different metals respond uniquely to laser etching. Steel is particularly versatile, reacting well to various etching techniques. The surface properties of the metal influence how it absorbs the laser energy. Generally, metals like aluminum and brass require precise attention to the laser settings to prevent unwanted effects.

The modification of the metal surface occurs due to the interaction of the laser with the material. This interaction can create textures and colors such as gray, black, or even reflective surfaces. Strength and durability may also change, depending on the etching parameters used. Proper understanding of how each metal reacts allows for better precision in design.

Depth Control and Precision

Achieving accurate depth control in laser etching is essential for detailed work on metal surfaces. The depth can be adjusted by varying the laser power and speed. Higher power settings generally increase the depth, but this can compromise the accuracy of finer details.

Precision in laser etching means the ability to create intricate designs without damaging the surrounding material. Advanced laser systems incorporate feedback mechanisms to maintain consistent depth and accuracy throughout the process. Techniques such as multi-pass etching can enhance detail without sacrificing strength, providing a high-quality finish that meets the requirements of different applications.

8) Quality and Efficiency

Laser etching steel combines high-contrast markings with improved efficiency, making it an ideal choice for various applications. The technology offers extreme precision, ensuring that intricate details are preserved. With advancements in automation, businesses can also enhance their throughput, while the durability of the marks ensures long-lasting identification.

Achieving High-Contrast Markings

High-contrast markings are achieved through the precise melting of the steel surface. This technique produces permanent marks that stand out clearly against the metal background. Fiber lasers are particularly effective for this purpose, offering superior results compared to CO2 lasers.

The process creates a stark difference in color that allows for easy visibility. The depth of the etch can also be adjusted, depending on the desired outcome. These clear, readable markings are essential for part identification and traceability in manufacturing settings.

Increasing Throughput with Automation

The integration of automated systems into laser etching significantly boosts productivity. Automation allows for continuous operation without the need for constant manual intervention. This leads to faster processing times and greater efficiency.

Moreover, automated systems can handle multiple parts simultaneously. This capability reduces production time and enhances consistency across batches. Overall, automated laser etching not only improves output but also maintains the quality of each marking.

Longevity of Marks

The durability of laser-etched marks is one of its most significant advantages. These markings exhibit excellent resistance to wear, corrosion, and fading. This permanence ensures that the information remains legible even under harsh conditions.

Laser etching creates a bond that withstands lengthy exposure to environmental elements. As a result, companies benefit from reduced costs associated with re-etching or replacing marked parts. The lasting quality of these permanent marks supports various industries that require reliable identification over time.

9) Differentiating Laser Etching from Engraving

Laser etching and engraving are two distinct techniques used for marking steel and other materials. Understanding their differences helps in choosing the right method for specific applications, considering factors like depth, contrast, and durability.

Etching vs. Engraving Techniques

Laser Etching affects only the surface of the material. It typically achieves a depth of about 0.001 inches. This technique melts the surface, creating raised areas and subtle color changes. The results are visually appealing and useful for branding and tracking purposes.

Laser Engraving, on the other hand, removes material more deeply, resulting in a permanent mark that can be several thousandths of an inch deep. This process creates more contrast and offers higher durability against wear and tear. It is often the method of choice for metal engraving, especially when a long-lasting impression is required.

Choosing Between Etching and Engraving

When selecting between etching and engraving, consider the intended use of the marking.

• Etching is faster and more cost-effective for projects needing less depth and detail. It is suitable for temporary or decorative applications.
• Engraving provides a stronger, more durable mark, making it suitable for items that will undergo heavy usage or exposure to the elements.

Factors like material, required depth, and intended visibility also influence the decision. For instance, metal marking often benefits from engraving due to its longevity, while lighter applications may suit etching better.

10) Adding a Unique Touch

Laser etching steel allows individuals and businesses to enhance their metal items with creativity. This process offers options for personal designs and branding, making items stand out in a unique way. The following explores how to implement creative designs and effective branding on steel.

Creative and Personalized Designs

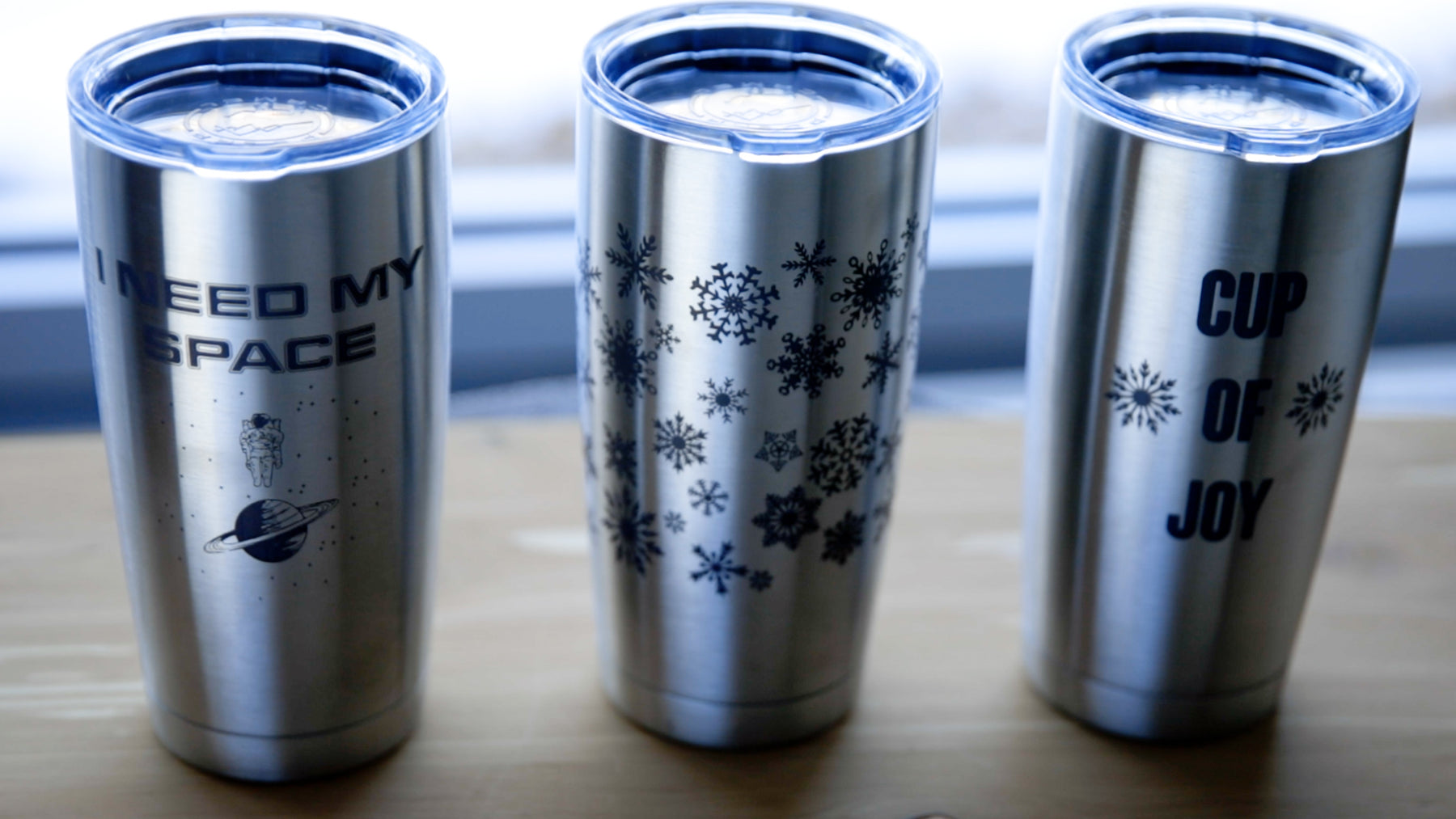

Laser etching can transform everyday metal parts into personalized works of art. People can add names, quotes, or pictures to their items, making them truly distinct.

For instance, a custom-designed keychain or a metal sign for the home can carry special meanings. This method is ideal for gifts or commemorative items where a personal touch matters.

Designs can be tailored to fit specific occasions, like weddings or graduations, where memorable verses can be etched onto steel. Users can also explore various patterns and motifs to suit personal styles, from simple geometric shapes to intricate floral designs.

Branding and Aesthetic Applications

Businesses can use laser etching to reinforce their brand identity. Logos are easily etched onto metal products, such as promotional items or tools. This process not only enhances the aesthetic appeal but also ensures long-lasting visibility.

Metal parts that carry a company’s logo convey professionalism and consistency. Additionally, unique designs can help create an emotional connection with customers. Brands can differentiate themselves by etching custom artwork alongside their names.

Using laser etching for branding can also enhance the product's perceived value. Well-designed metal items leave a lasting impression, making customers more likely to remember and choose that brand again.

11. Frequently Asked Questions

This section addresses common inquiries about laser etching on steel. It provides clear answers to help understand the process, materials, and techniques required for effective laser etching.

What type of laser is best suited for laser engraving on steel?

Fiber lasers are typically best for laser engraving on steel. They are designed for metal work and can produce precise marks with a clean finish. CO2 lasers can also be used, but they require special coatings or sprays to etch metals effectively.

What factors determine the cost of laser etching a piece of steel?

The cost of laser etching can vary based on several factors. These include the complexity of the design, the size of the piece, material thickness, and the type of laser used. Additionally, labor and setup time can influence the final price.

Can stainless steel be effectively etched with a laser, and what are the considerations?

Yes, stainless steel can be effectively etched with a laser. It is important to consider the type of stainless steel, as specific grades may require different settings. Also, the surface finish and any coatings on the metal can impact the outcome of the etching process.

What are the differences between laser etching and laser engraving when applied to steel surfaces?

Laser etching creates a shallow mark on the surface, modifying only the top layer of the steel. This method is often used for lighter designs. In contrast, laser engraving removes material to create deeper marks, resulting in more defined and durable engravings.

What is the importance of using a marking spray during laser engraving on metal?

Using a marking spray can enhance the visibility of the engraving. It helps to create contrast between the etched area and the steel surface. This spray can also protect the metal during the engraving process, leading to a cleaner finish.

How do I adjust laser settings to achieve high-quality engravings on metal surfaces?

To achieve high-quality engravings, adjusting settings such as speed, power, and frequency is essential. Higher power settings may be needed for thicker materials, while faster speeds help to achieve finer details. Testing on scrap material can help determine the ideal settings for a specific project.
