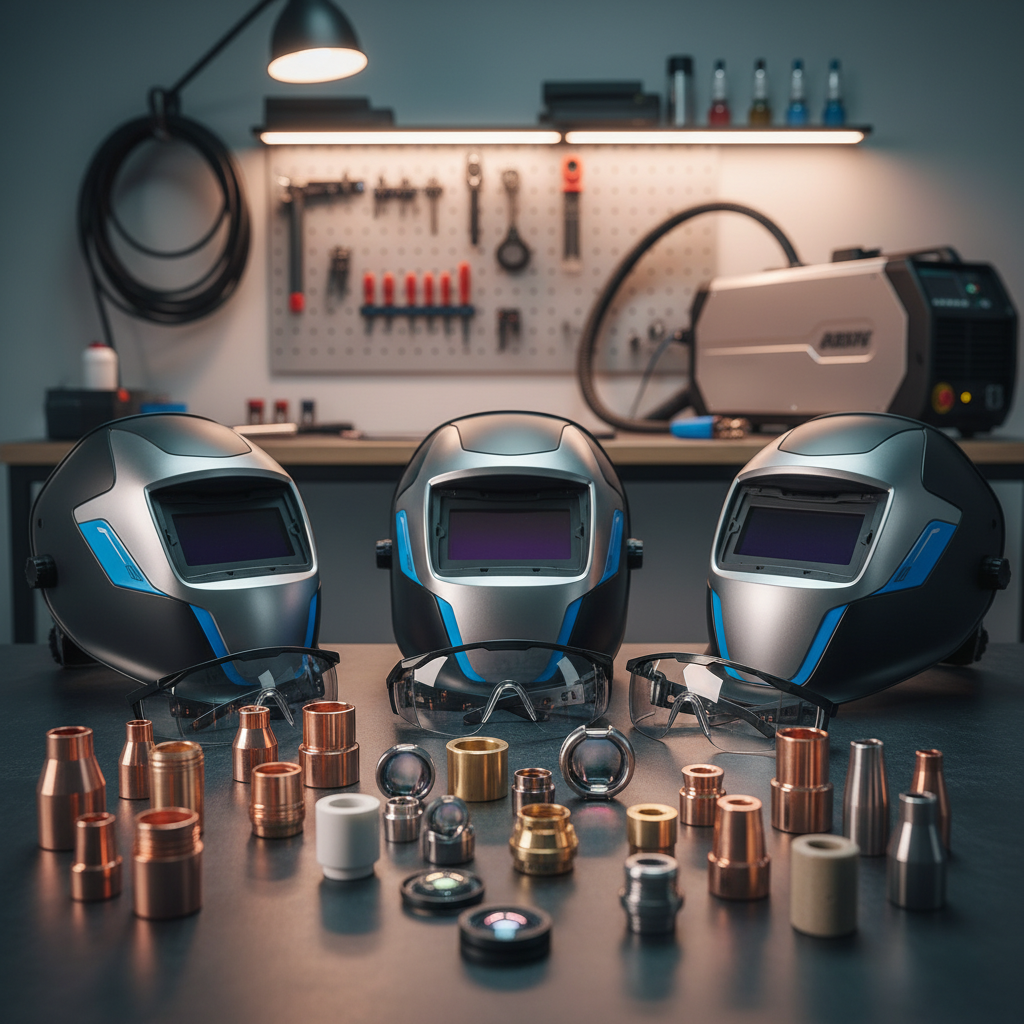

Laser Welder Consumables: Nozzles, Lenses, Safety Gear
Every laser welder operator eventually learns the same lesson: a machine that was welding perfectly yesterday is producing spatter and porosity today, and nothing in the parameter settings seems to have changed. Nine times out of ten, the answer is a consumable. A protective lens that's accumulated a week's worth of metal vapour. A nozzle clogged with spatter. A fume filter that's past its service life and no longer capturing what it should.
Consumables are the most frequently neglected part of laser welder maintenance precisely because they don't cause dramatic machine failures — they cause gradual, easy-to-miss performance degradation. This guide covers every consumable on a handheld fiber laser welding system: what it does, how long it lasts, and how to get more from each component.
If you're setting up your machine for the first time and want the full setup sequence before diving into consumables, our how to set up a laser welder guide covers that from power supply to first weld. For background on the laser welding process itself, our what is laser welding guide covers the fundamentals.
What Are Laser Welder Consumables? (And Why They Matter)
The Three Main Consumables That Affect Weld Quality
Nozzles, Protective Lenses and Focus Lenses
The three consumables that directly impact weld quality on every handheld fiber laser system are the copper nozzle, the protective window (cover lens), and the focus lens. Every other component on the machine — the laser source, the fiber delivery cable, the wobble head — is hardware. These three items are the parts you replace regularly as part of normal operation.
The copper nozzle sits at the tip of the welding gun and directs the shielding gas flow around the laser beam. Its job is to deliver a laminar, consistent argon (or nitrogen) blanket over the weld zone. When it accumulates spatter, gets deformed, or wears out, the gas flow becomes turbulent or misdirected, and the weld pool loses its atmospheric protection. The result is visible as oxidation, porosity, and discolouration on what should be clean welds.
The protective window (cover lens) sits in the welding head assembly between the laser optics and the outside world. It's a replaceable piece of coated optical glass specifically designed to take the punishment of metal vapour, micro-spatter, and fume deposits that the welding environment produces. It protects the far more expensive focus lens behind it from contamination. When it gets dirty, it absorbs laser energy instead of transmitting it — the machine behaves as if it's running at lower power because it effectively is.
The focus lens concentrates the laser beam to its working spot size. It's a precision optical component with a coated surface that can be damaged by contamination or thermal stress. It's significantly more expensive than the protective window, and significantly less frequently replaced — but when it does fail, the cost is meaningful.
How Worn Consumables Damage Weld Quality and Machine Health
A dirty or damaged protective lens doesn't just reduce weld quality. It creates a heat load on the optical assembly that the lens is not designed to absorb. As contamination on the lens absorbs laser energy rather than transmitting it, the lens temperature rises — and lens damage from thermal overload can extend from the protective window to the focus lens behind it if not caught in time.
The GWEIKE Cloud technical guides on handheld laser maintenance note this progression explicitly: a contaminated cover lens left unchecked can cause damage to the focus lens, which multiplies the repair cost from a few dollars per protective window to potentially hundreds of dollars for a focus lens replacement. Daily inspection of the cover lens is the single most cost-effective maintenance habit on any laser welder.
Laser Welder Nozzles: Types, Selection and Replacement
Watch this practical maintenance guide for laser welder nozzles and lenses:
Nozzle Shapes and What Each Is Designed For
Conical, Flat and Custom Nozzles: When to Use Each
Most handheld laser welding systems ship with a set of 5–10 copper nozzles in different configurations. Understanding which configuration to use prevents the common mistake of welding with the wrong nozzle geometry for the joint type, which results in poor gas coverage even when flow rate is correctly set.
Conical nozzles (tapered tip) are the most common type and the standard choice for most production welding. The tapered geometry provides good gas coverage while allowing visibility of the weld zone. They're suitable for butt welds, fillet welds, and general seam welding on flat and slightly curved surfaces.
Flat or wide-aperture nozzles deliver a broader gas coverage area, making them useful for wider welds, slower travel speeds where the cooling zone extends further behind the nozzle, and materials like titanium where the post-weld cooling zone needs gas coverage. The trade-off is slightly less visibility of the weld pool in tight positions.
Narrow or precision nozzles provide better access in tight corners, inside joints, and close-to-obstruction welding positions. The reduced aperture narrows the gas coverage area, so they're not appropriate as a general-purpose choice but are valuable for repair work in awkward positions.
Cutting nozzles (included with 3-in-1 and 4-in-1 machines) are optimised for cutting mode operation with different aperture geometry and are not appropriate for welding.
How Often Should You Replace Your Nozzle?
Signs of Wear and What Worn Nozzles Do to Your Welds
Nozzle replacement frequency varies with material, power level, and operating discipline. On standard stainless steel and mild steel production welding, a copper nozzle under clean operating conditions can last 10–40 hours of arc time before needing replacement. On galvanised steel, aluminum, or any material that produces heavy spatter, replacement intervals shorten significantly.
The inspection takes ten seconds: look at the nozzle tip under good lighting before each shift. What you're looking for:
- Spatter buildup inside the aperture — a common buildup pattern is small metal globules partially blocking the nozzle bore. These can't be cleaned away reliably; the nozzle needs replacing. Some operators use anti-spatter spray on the nozzle tip to slow this accumulation.
- Physical deformation — any visible warping, melting, or erosion at the tip means the nozzle has exceeded its thermal capacity and should be replaced immediately.
- Bore elongation or irregularity — the aperture should be circular and centred. An oval or off-centre bore produces an asymmetric gas stream.
- Weld-quality signal — sudden or progressive weld quality deterioration (oxidation, porosity, inconsistent bead) with no parameter changes is often a nozzle issue. Swap the nozzle and run a test weld before adjusting parameters.
OEM vs Aftermarket Nozzles: Which Should You Buy?
For copper nozzles, mid-market aftermarket options that match the OEM specifications (bore diameter, aperture geometry, thread type) are generally acceptable — copper nozzles are simple mechanical components with limited precision requirements. The key is matching the specifications precisely: bore diameter, overall length, and thread pitch must match your machine's welding head.
The risk with very cheap or unverified aftermarket nozzles is dimensional inconsistency — a nozzle that's slightly off-centre or with a bore diameter that doesn't match will produce asymmetric gas flow regardless of flow rate setting. Buy from suppliers who can confirm specifications match your machine model.
Laser Welder Lenses and Optics
Protective Windows (Cover Lenses): The First Line of Defense
How to Inspect, Clean and Replace Protective Windows
The protective window is the consumable you interact with most frequently. It should be inspected before every shift and replaced whenever inspection indicates contamination that cleaning can't resolve.
Inspection: Remove the protective window from the welding head (following your machine's procedure — typically a quarter-turn or twist release). Hold the lens at an angle under a bright light source and look for: coating deposits (metal vapour condensation appearing as a haze or film), physical spatter impacts (visible as bright points or dark spots), and scratches (linear marks from incorrect cleaning).
Cleaning: Clean only if the contamination is minor and the lens shows no physical damage. Use only anhydrous (99.9%+) isopropyl alcohol and purpose-made optical cleaning tissues — never standard paper tissue, cotton wool, or ordinary cloths, all of which scratch optical coatings. Apply a small amount of IPA to the cleaning tissue, not directly to the lens. Wipe in a single direction from centre outward — not circular, not back-and-forth. Light contamination from metal vapour typically wipes clean. Heavy deposits, impact marks, or any visible scratches mean replacement, not further cleaning.
Replacement: Replace immediately if: cleaning doesn't restore clarity; there are visible impact marks or scratches; or you see any signs of thermal damage (iridescent colouration or crazing of the coating). Keep a minimum of 5–10 replacement windows stocked. Running out of cover lenses mid-production and attempting to weld without one — or with a damaged one — risks focus lens damage that costs far more than a case of cover lenses.
What Happens When You Ignore a Dirty Cover Lens
A contaminated cover lens absorbs laser energy rather than transmitting it. At moderate contamination levels, the effect is a gradual loss of effective power at the workpiece — the machine is nominally running at 60% power, but a contaminated lens means only 45–50% of that reaches the material. The weld becomes cold, penetration drops, and porosity increases. Operators often compensate by increasing power, which accelerates the thermal damage to the contaminated lens.
At severe contamination levels, the localised heating on the lens surface can crack the glass or damage the anti-reflection coating, producing a lens that scatters the beam rather than transmitting it. This scatter can damage the collimating optics in the welding head — a repair that's an order of magnitude more expensive than a replacement cover lens.
Focus Lenses: Higher Cost, Higher Risk
How Long Focus Lenses Last and How to Extend Their Life
The focus lens is the precision optical component that concentrates the laser beam to its working spot size. It's protected from direct contamination by the cover lens in front of it, but it's not immune to damage — in particular from: contamination that bypasses a damaged or missing cover lens; condensation inside the optical head from temperature cycling; or mechanical shock to the welding head.
A well-maintained focus lens on a machine where cover lenses are replaced conscientiously can last 1,000–3,000+ hours of operation. A focus lens on a machine where cover lenses are routinely run dirty will fail much earlier.
Signs that the focus lens may need attention: weld quality that doesn't improve after replacing the cover lens and cleaning the optical path; visible haze or deposits on the lens surface when inspected (requires disassembly of the welding head following manufacturer instructions); or beam quality that appears to have changed (wider spot, asymmetric bead profile) even with clean covers.
Focus lens cleaning should be performed by qualified personnel following the machine manufacturer's specific procedure. Incorrect cleaning of a focus lens — using the wrong solvent, excessive pressure, or the wrong cleaning media — causes more damage than it prevents. When in doubt, contact the machine manufacturer or an authorised service centre rather than attempting to clean a focus lens without proper training.
Collimating Lenses: What They Are and When They Need Attention
The collimating lens sits further up the optical train and converts the diverging output from the fiber delivery into a parallel beam before the focus lens concentrates it. It's generally more protected from contamination than the cover lens and focus lens, and in normal operation doesn't need attention as a routine consumable.
If your welding head takes a significant physical impact, if the fiber QBH connector shows damage, or if you notice beam quality issues after the focus lens and cover lens have been ruled out, the collimating lens is the next item to inspect — by qualified personnel or your machine's service team.
Safety Gear and PPE Consumables
Laser Safety Glasses: Replacement Schedule and OD Degradation
Laser safety glasses rated for fiber laser wavelengths (1070nm, OD 5+ or OD 6+ depending on power level) are critical PPE — not optional and not interchangeable with standard safety glasses, sunglasses, or darkened welding lenses. They're also consumables: the optical filter material in laser safety glasses can degrade over time, and physical damage to the lens surface reduces protection.
Replacement triggers for laser safety glasses:
- Any visible scratch, chip, or crack on either lens — replace immediately, regardless of how minor the damage appears
- Impact to the frames — if the glasses were struck, dropped, or subjected to impact, replace even if damage isn't visible
- After 3–5 years of regular use — optical filter materials in laser safety glasses have a finite service life; manufacturer-specified replacement intervals should be followed
- If the OD rating can't be confirmed — glasses without clear wavelength and OD markings should not be used
Never share laser safety glasses between operators without confirming they're rated for the specific machine in use. A 1070nm laser requires glasses specifically rated at that wavelength — glasses rated for other laser types or wavelengths may offer no protection at 1070nm.
Our laser welding safety guide covers the full PPE requirements and laser controlled area setup in detail.
Helmet Filters and Lens Inserts
Most laser welding operations use a dedicated laser welding helmet (with an IR-filtering lens) rather than a standard auto-darkening welding helmet, as auto-darkening helmets are not rated for Class 4 laser protection. The IR filter insert in a laser welding helmet is a consumable that should be inspected regularly and replaced if scratched, damaged, or if the protective outer cover lens becomes heavily contaminated.
If your machine includes a standard welding helmet in the equipment kit (as the IPG LightWELD and Xlaserlab X1 Pro both do), keep spare filter lenses in stock. A helmet that can't be used because the filter is damaged forces unprotected operation — an unacceptable situation.
Gloves, Sleeves and Flame-Resistant Clothing Lifespan
Flame-resistant (FR) welding gloves and clothing should be inspected before each use and replaced when: the FR treatment shows evidence of degradation (visible on washing, or past the manufacturer's wash cycle limit); the material has been burned, cut, or otherwise compromised; or the gloves no longer provide adequate dexterity for controlled welding gun operation.
One specific caution for laser welding: avoid latex gloves and thin polyester clothing. If struck by a stray reflection or nearby heat, these materials can melt to skin. Leather gloves or purpose-made FR welding gloves are appropriate. Leather sleeves or a leather welding jacket provides adequate arm protection.
Fume Extractors and Filters
Filter Types for Laser Welding: HEPA and MERV-15/16
Laser welding produces fume particles in the fine and ultrafine range — sub-micron particles that reach deep into the lungs and which standard dust extraction equipment doesn't capture. The correct filter specification for laser welding fume is either a HEPA filter (H13 or H14 grade, capturing 99.95%+ of particles at 0.3µm) or a MERV-15/16 rated filter for comparable filtration performance.
A standard shop dust extractor — even a good-quality one — is not rated for laser welding fume. The particle size distribution from laser welding is different from grinding or machining swarf, and standard MERV-8 or MERV-10 filters pass a significant fraction of the most hazardous particles.
How Often to Replace Filters and What Happens If You Do Not
Fume extractor filter replacement frequency depends on operating hours and materials being welded. Galvanised steel, coated materials, and aluminum produce heavier fume loads than clean stainless steel or mild steel. Manufacturer guidance typically specifies replacement at a given pressure drop across the filter (measurable with a differential pressure gauge) or at a fixed interval of 100–400 operating hours depending on filter type and duty.
A clogged fume filter doesn't stop the extractor from running — it just reduces the extraction efficiency. The fan moves air through increasing resistance, and the effective capture rate drops while the noise increases. The practical outcome is that fume that should be captured reaches the operator's breathing zone instead. This is a health risk that is completely invisible during operation — there's no weld quality signal that tells you the filter is spent.
Fume Extractor Maintenance Schedule
Before each session: Check extraction flow at the nozzle (tissue paper deflection test — hold a tissue 20cm from the nozzle intake; it should deflect clearly). If flow is noticeably reduced from normal, inspect the filter.
Weekly: Inspect the pre-filter (where fitted) for visible loading. Many fume extractors include a coarse pre-filter that captures larger particles before the main HEPA filter — this can often be cleaned or replaced independently, extending HEPA filter life.
Per manufacturer interval or when pressure drop indicates: Replace the HEPA/main filter. Don't wait until the extractor visibly struggles — by then you've been operating with degraded protection for some time.
When welding galvanised, zinc-coated, or coated materials: Increase inspection frequency. These materials load filters faster than clean steel, and the fumes they produce (zinc oxide fumes from galvanised steel in particular) are acutely hazardous at higher concentrations.
How to Reduce Your Consumable Costs
Proper Cleaning Technique to Extend Lens Life
The single most impactful practice for extending cover lens life is using the correct cleaning technique every time. The failure mode that destroys otherwise-cleanable lenses is incorrect cleaning: wrong solvent, wrong media, or wrong technique that scratches the optical coating and turns a cleanable lens into a replacement lens.
The correct technique: anhydrous IPA only (water-free — regular isopropyl from the pharmacy often contains 30% water, which leaves residue on optical coatings), purpose-made optical cleaning tissues only, apply solvent to tissue not lens, single wipe from centre outward, never back-and-forth, never reuse the same wipe surface. This technique reliably cleans light-to-moderate metal vapour deposits without scratching.
The correct sequence for our how to laser weld step by step guide includes the daily lens inspection as step zero before any welding session — establishing this as a habit takes perhaps 90 days, after which it becomes automatic.
Storage Best Practices to Prevent Contamination
Optical consumables stored incorrectly degrade before use. Protective windows in particular are small, easily mixed up, and vulnerable to contamination from shop dust and moisture. Keep all optical consumables in the sealed packaging they arrive in until needed. If bulk-buying cover lenses (which is cost-effective), store them in a sealed container in a dry, dust-free location — not on an open shelf in the workshop.
Nozzles should be stored clean and dry. Keep used nozzles separate from new stock to avoid accidentally installing a worn nozzle under pressure.
Buying Strategy: OEM vs Aftermarket and Bulk Ordering
Cover lenses (protective windows): Buying in bulk from the machine manufacturer or verified OEM supplier reduces per-unit cost by 30–50% over individual purchases and ensures you always have stock. Calculate your monthly consumption based on production volume and order at least 2–3 months' supply. Running out of cover lenses is avoidable and expensive in its consequences.
Nozzles: Aftermarket copper nozzles that match OEM specifications are acceptable and can offer meaningful cost savings. Verify bore diameter and thread specification before ordering. Buy in packs of 10–20 to reduce per-unit cost.
Focus lenses: Always OEM or verified equivalent. The precision specifications of a focus lens are specific to the machine's optical design. An incorrect focal length or coating specification will change beam characteristics in ways that aren't immediately obvious but degrade weld quality and potentially damage other optical components.
Safety glasses: Always OEM or verified-specification laser safety eyewear from a reputable optical safety supplier. Never compromise on PPE specification to reduce cost. The cost of verified OD6+ glasses at 1070nm is modest relative to the consequences of inadequate protection.
Frequently Asked Questions: Laser Welder Consumables
How often should I replace my laser welder nozzle?
Replacement frequency depends on material and operating conditions. On clean stainless steel and mild steel, a copper nozzle typically lasts 10–40 hours of arc time before spatter buildup or physical wear degrades its performance. On galvanised steel, aluminum, or coated materials that produce heavier spatter, this interval shortens significantly — sometimes to a few hours. The practical answer is to inspect before every shift: if the aperture shows buildup that can't be cleared, or any physical deformation, replace it. Nozzles are inexpensive relative to the weld quality consequences of running a worn one. Keep a minimum of 5–10 spares in stock so replacement is never delayed.
How do I know if my protective lens needs replacing?
Inspect it before every session by removing it from the welding head and holding it at an angle under a bright light. A lens that needs replacing will show: visible spots, hazing, or coating deposits that remain after correct cleaning with anhydrous IPA and an optical cleaning tissue; any physical impact marks or bright points (micro-spatter impacts); scratches in any direction; or iridescent colouration suggesting thermal damage to the coating. If you're seeing weld quality decline (spatter, porosity, reduced penetration) with no parameter changes, replace the cover lens first — it's the most common cause. When in doubt, replace it. A cover lens costs a few dollars; the focus lens it protects costs significantly more.
What is the most expensive consumable to replace?
The focus lens is by far the most expensive consumable on a handheld fiber laser welder. Depending on the machine manufacturer and focal length specification, a replacement focus lens can cost $150–$500 or more. The next most significant cost is the welding head collimating assembly if damaged, though this is more a repair than a routine consumable replacement. By contrast, cover lenses typically cost $3–$15 each, and nozzles $2–$10 each. This is why protective window discipline is so commercially significant — every cover lens you replace at $5 is protecting a focus lens that costs 30–100x more. The fume extractor HEPA filter is a mid-range consumable, typically $30–$100 per replacement, with replacement intervals of every few hundred operating hours depending on materials.
Can I clean a focus lens or should I replace it?
Focus lens cleaning should only be attempted by qualified personnel using the correct procedure from your machine's service documentation. Incorrect cleaning of a focus lens — using the wrong solvent, applying excessive pressure, or using inappropriate cleaning media — is more likely to damage the lens than to restore it. Anhydrous IPA and optical cleaning tissues are the appropriate materials if cleaning is to be attempted, but the technique must be precise and gentle. If you're not confident, contact the machine manufacturer or an authorised service centre. Given that a focus lens costs $150–$500+, the cost of a professional service call to clean it correctly is well justified compared to the risk of damaging it with an incorrect DIY attempt.
What PPE is specifically required for laser welding?
The minimum PPE for operating a handheld fiber laser welder is: laser safety glasses rated OD 5+ (preferably OD 6+) at 1070nm; a laser welding helmet with an IR-filtering lens rated for Class 4 laser exposure; leather or FR welding gloves; and flame-resistant clothing covering all exposed skin. Standard auto-darkening welding helmets are not rated for Class 4 laser protection and should not be used as a substitute. Standard safety glasses — even darkened ones — offer no meaningful protection against a 1070nm fiber laser beam. In addition to PPE, a fume extraction system rated for ultrafine welding fume (HEPA H13/H14 or MERV-15/16) must be in operation within 200mm of the weld zone. Our laser welding safety guide covers the full requirements in detail.
