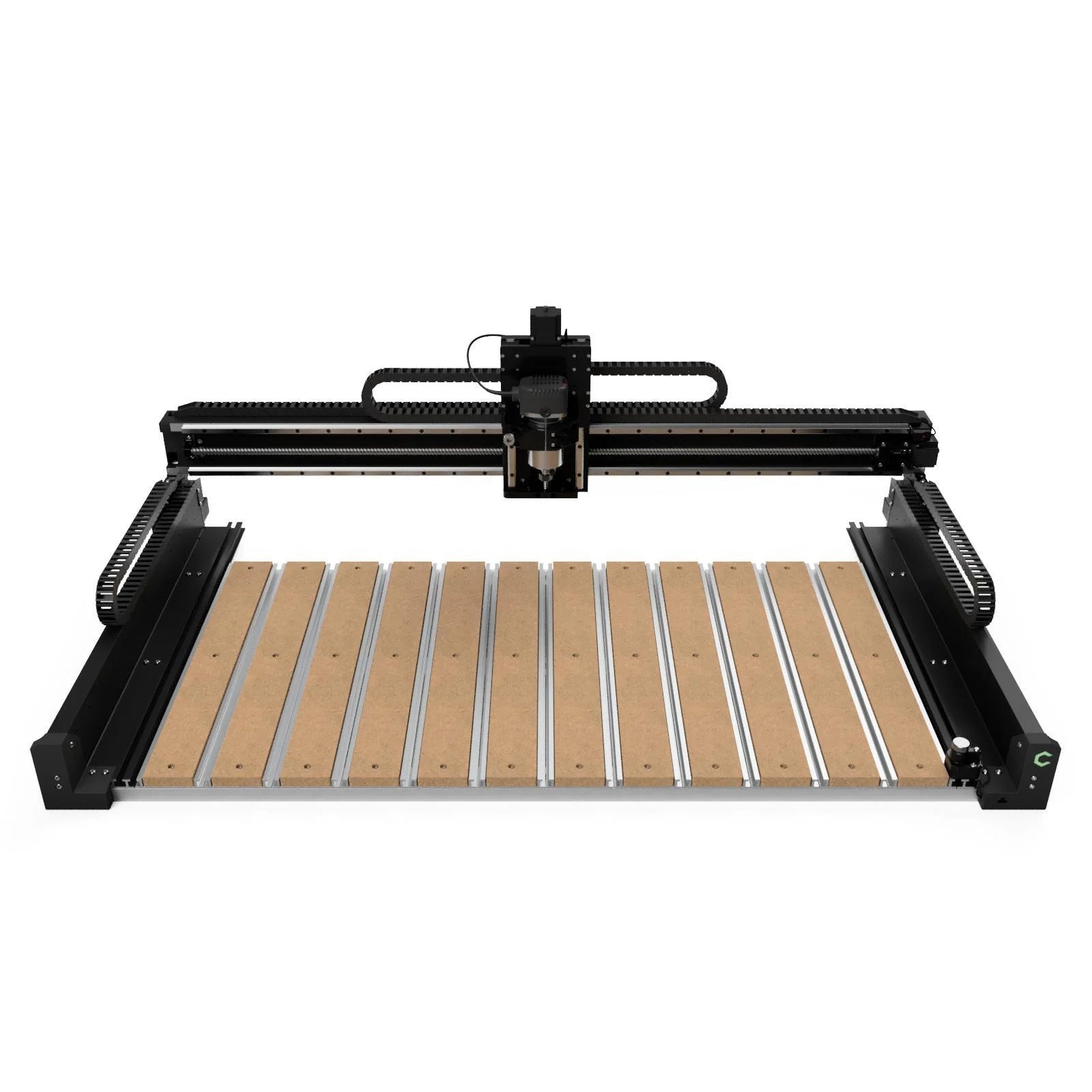

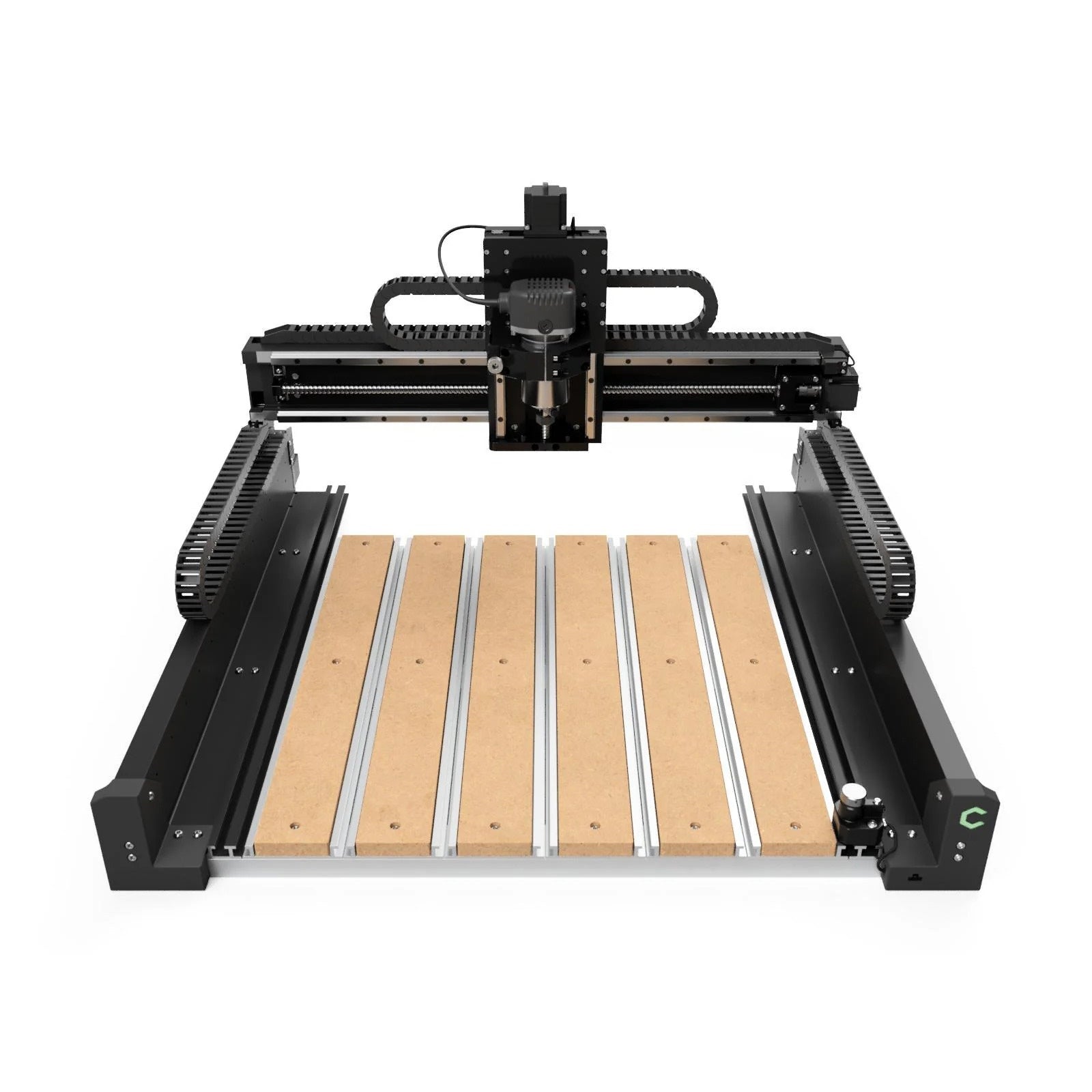

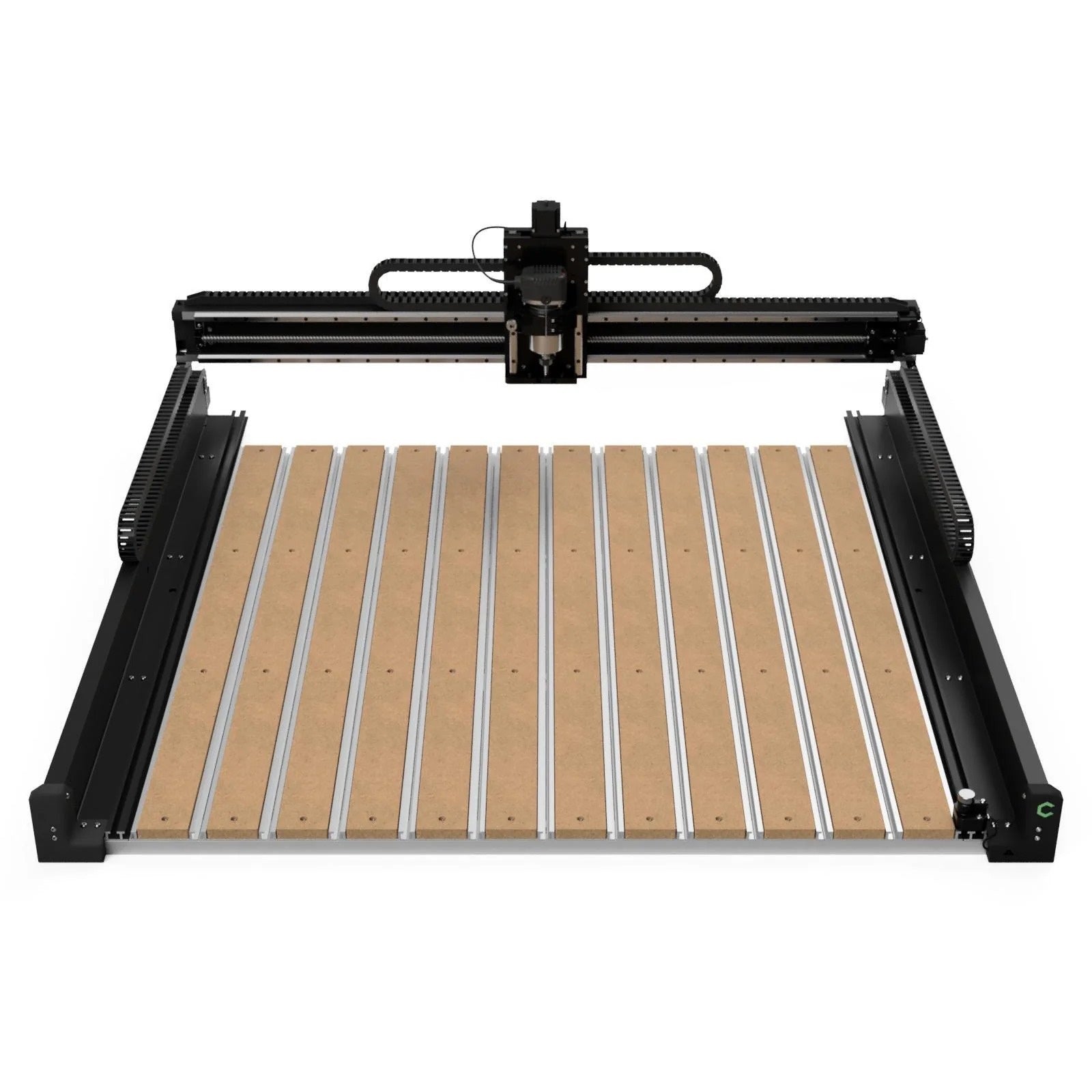

Shapeoko 5 Pro 4x4 designed with a robust HG-15 linear rail system, precision 16 mm ball screws, and dual Y-axis inductive homing, this CNC router offers exceptional stability and repeatable performance. Whether you’re machining large wooden panels, aluminum plates, or intricate designs across wide workpieces, the Shapeoko 5 Pro 4×4 delivers professional-level results from edge to edge.
With a massive 48.7" × 48.7" working area, this machine brings factory-grade production capacity into your workshop—without the complexity or cost of a full industrial system.
The Shapeoko 5 Pro 4×4 CNC Router is the ultimate machine for serious makers who demand large-format precision and professional-grade performance in their workspace.
Every component of the Shapeoko 5 Pro 4×4 is engineered for rigidity and accuracy. The ball screw drive system ensures minimal backlash, while the HG-15 linear rails maintain stability even under heavy cutting loads.
With a step resolution of 0.012 mm (X/Y) and 0.006 mm (Z), every motion is crisp and controlled — perfect for carving fine details, machining aluminum, or creating seamless joinery.
The 3.15″ gantry shift provides additional clearance for edge cutting and joinery applications, while the hybrid T-slot table allows flexible clamping for materials of all shapes and sizes.

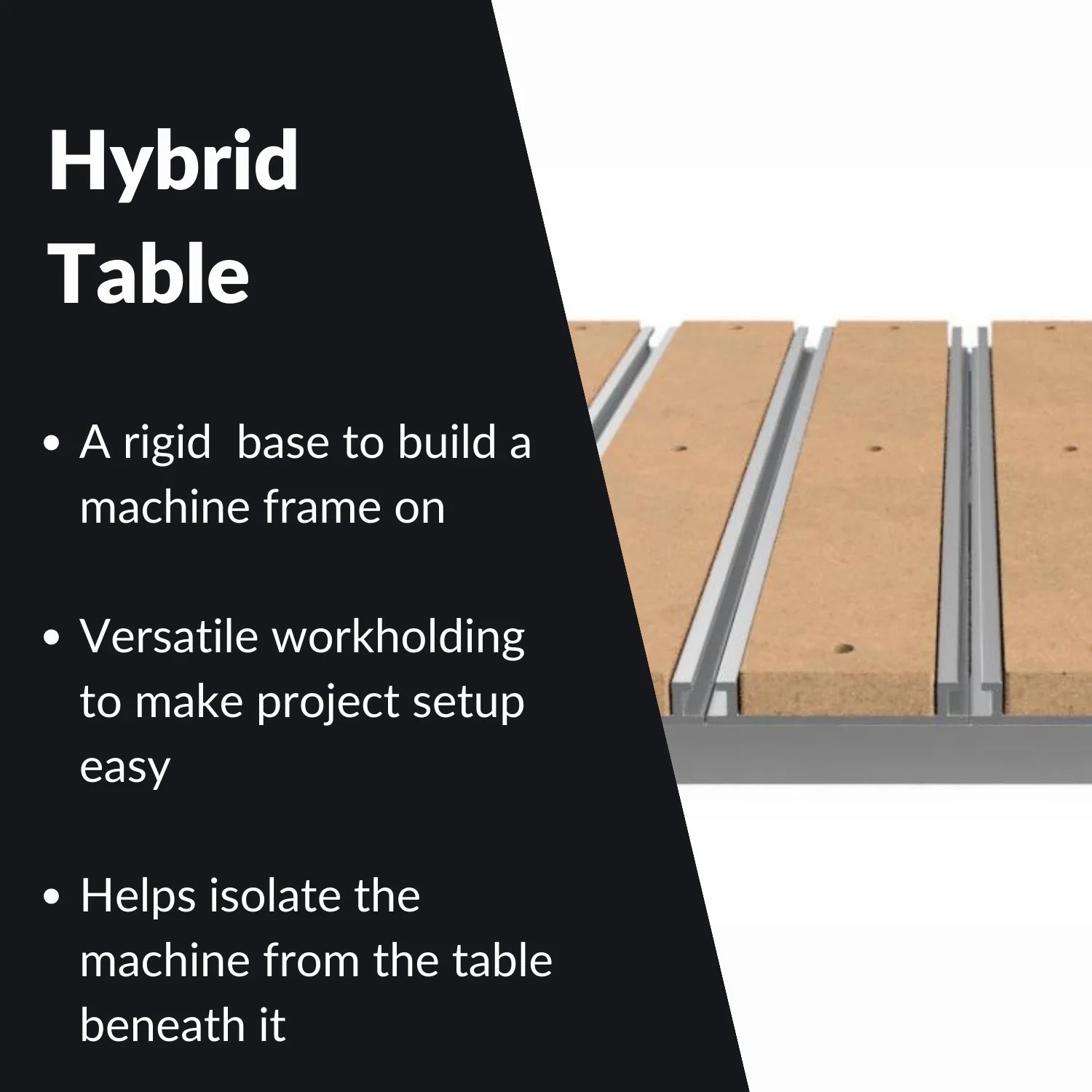

With its Hybrid T-slot Table and Sweepy 65mm V2 Dust Boot, the Shapeoko 5 Pro 4×4 ensures your workspace stays clean and your cuts stay precise. The 4.04" center-to-center T-slot spacing provides excellent workholding flexibility, while the integrated dust boot collects debris at the source for a cleaner environment.
Its 4-inch clearance (with table) or 5-inch clearance (without table) makes it versatile enough for thick materials or tall fixtures.
The Shapeoko 5 Pro 4×4 CNC Router offers industrial-level capability with the simplicity of desktop setup. Its 4A draw ensures efficient power usage, while auto-switching voltage makes it globally compatible.
Paired with Carbide Create and Carbide Motion, you’ll go from design to production with zero hassle. Whether you’re using Windows 10/11 or macOS 10.14+, setup is plug-and-play.
Your Shapeoko 5 Pro 4×4 CNC Router + 65mm Spindle comes complete with:
Everything you need for professional-grade CNC performance is included — no extras required.
1. What materials can the Shapeoko 5 Pro 4×4 cut?
It can cut a wide range of materials including hardwoods, MDF, plywood, acrylic, plastics, composites, PCBs, carbon fiber, and soft metals such as aluminum and brass.
2. What makes the Shapeoko 5 Pro 4×4 different?
Compared to smaller Shapeoko models, the 4×4 offers a larger cutting area, stronger linear rails, and a precision ball screw motion system — enabling industrial-level work right in your shop.
3. Does it support VFD spindles?
Yes. The 65mm mount accommodates both compact trim routers (like Makita RT0701C) and VFD spindle systems for quieter, more powerful cutting.

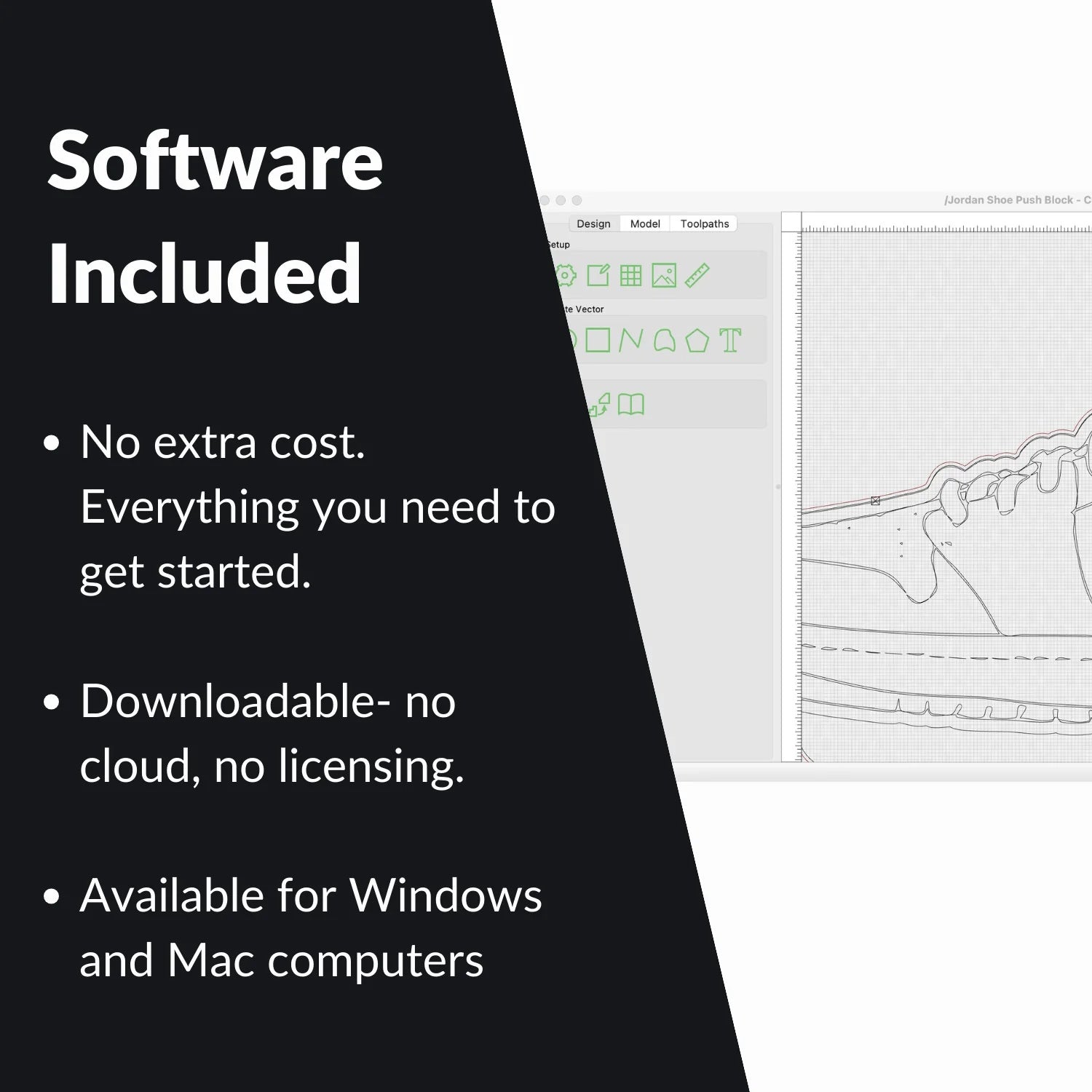

4. Is software included?
Yes! Carbide Create (for design/CAM) and Carbide Motion (for control) are both included and designed specifically for the Shapeoko ecosystem.
5. What kind of support is available?
Carbide 3D provides four 30-minute one-on-one training sessions with CNC experts, plus U.S.-based tech support and a large online user community.
| Specification | Details |
|---|---|

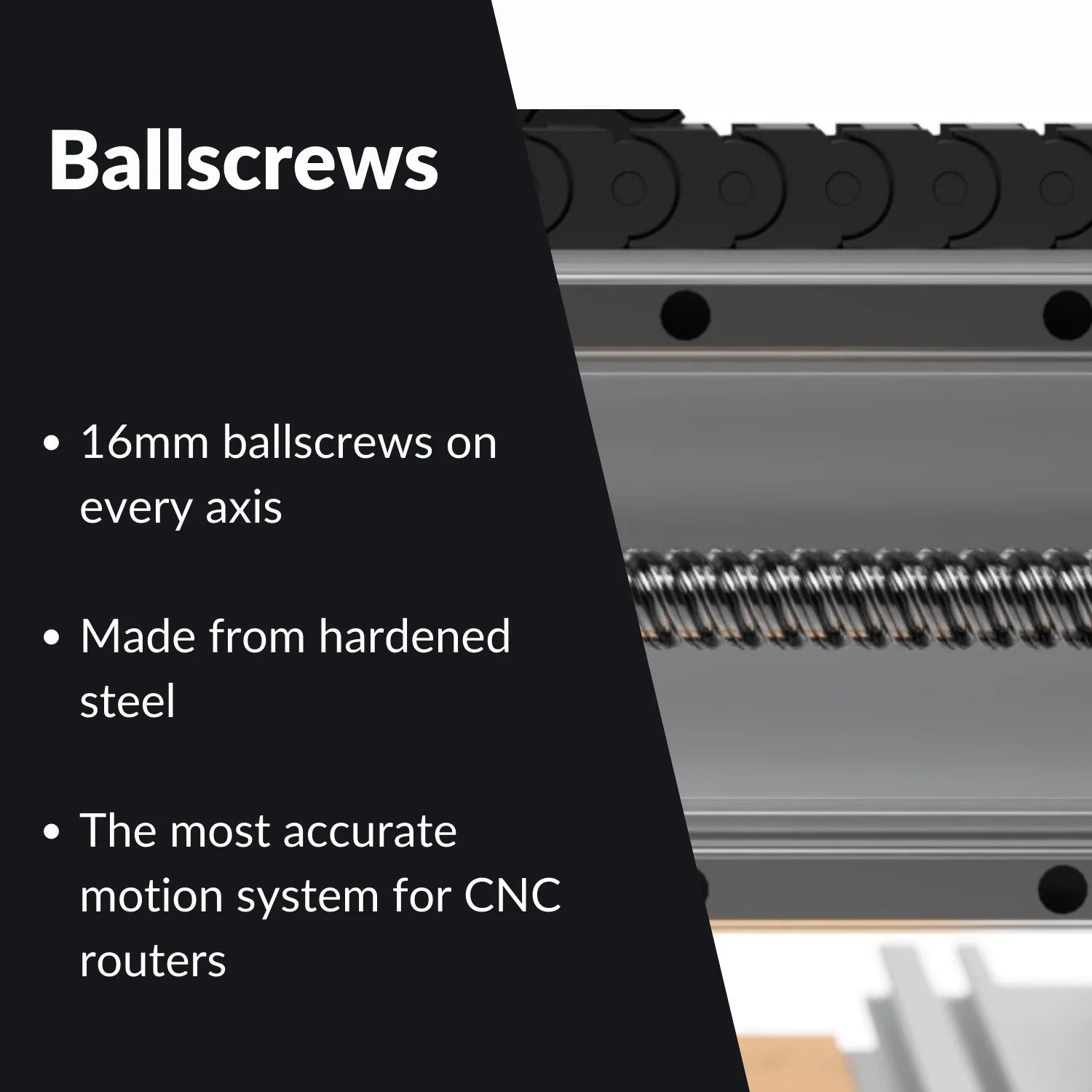

| Ballscrew X/Y | 16 mm diameter, 20 mm pitch (with custom wiper) |
| Ballscrew Z | 16 mm diameter, 10 mm pitch |
| Linear Rails | HG-15 hardened linear guides |
| Homing Switches | Dual Y inductive sensors |
| Ballscrew Accuracy | ±50 µm per 300 mm |
| Step Length (X/Y) | 0.012 mm |
| Step Length (Z) | 0.006 mm |
| Spindle Mount | 65 mm diameter |
| Total Z Travel | 6.1 in (5.51 in with Sweepy Pro) |
| Clearance (Hybrid Table) | 4 in |
| Clearance (No Table) | 5 in |
| Gantry Shift (Joinery) | 3.15 in |
| T-Slot Spacing | 4.04 in center-to-center |
| Voltage | 110V or 220V (auto-switching) |
| Amperage | 4A (machine only) |
| AC Plug | IEC C14 to NEMA 5-15P (standard U.S. plug) |
| Machine Travel | 48.7 in (X) × 48.7 in (Y) |
| Machine Footprint | 60 in (X) × 59 in (Y) × 23.25 in (Z) |
| Shipping Box 1 | 67 in × 17 in × 17 in — 123 lbs |
| Shipping Box 2 | 65 in × 16 in × 16 in — 129 lbs |
| System Requirements | Windows 10/11 (64-bit) or macOS 10.14+ |
