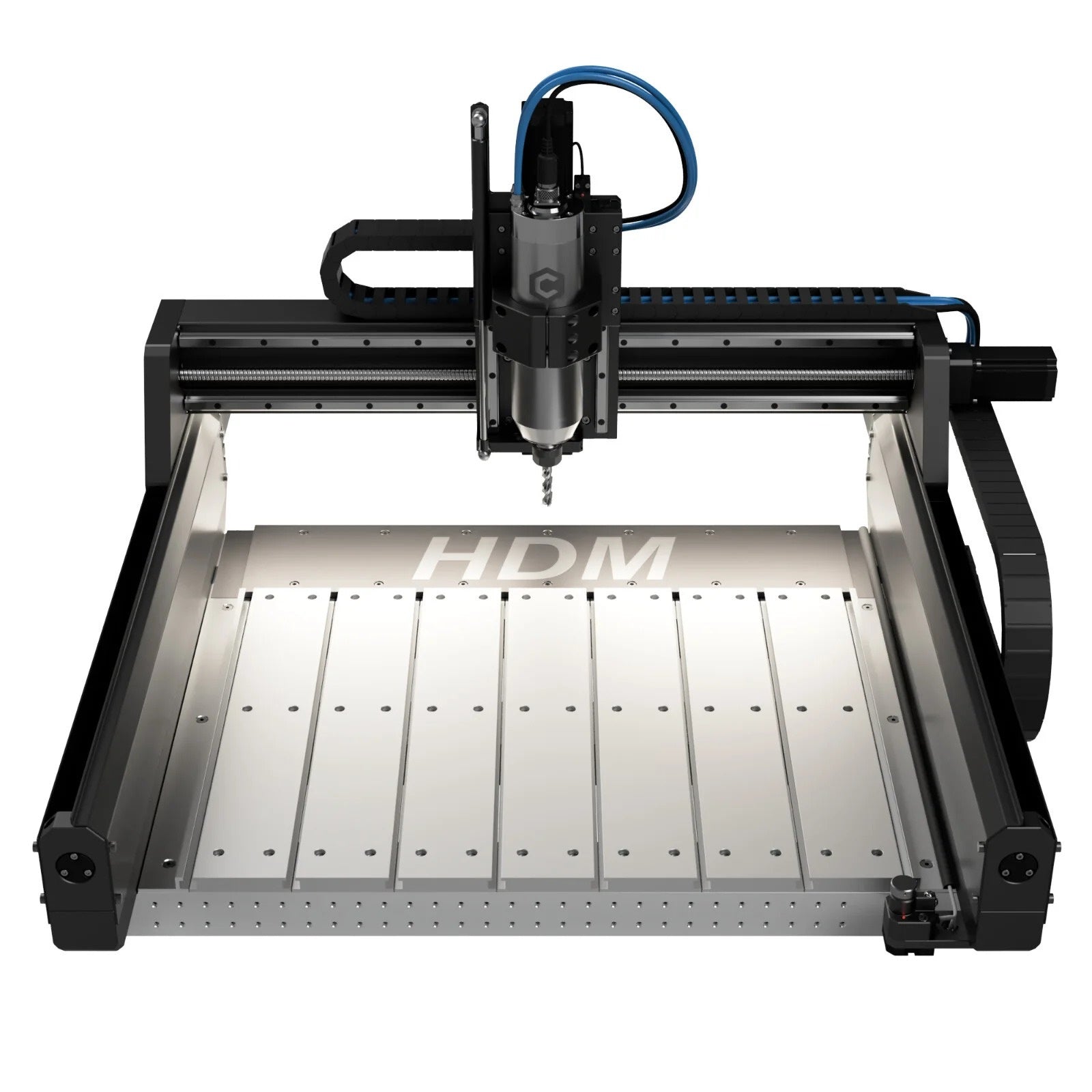

Engineered by Carbide 3D, the HDM combines industrial-grade rigidity with user-friendly operation. With its HG-15 linear rails, 16 mm ball screws, and 80 mm water-cooled VFD spindle, it delivers the power and accuracy demanded by professional shops and advanced makers alike. Designed to run all day without breaking a sweat, the Shapeoko HDM brings production-level performance to your workshop.
It’s a CNC router that doesn’t just perform — it endures. Whether you’re machining parts all day in a small shop or producing fine artistic engravings, the Shapeoko HDM runs continuously, reliably, and quietly without compromise.

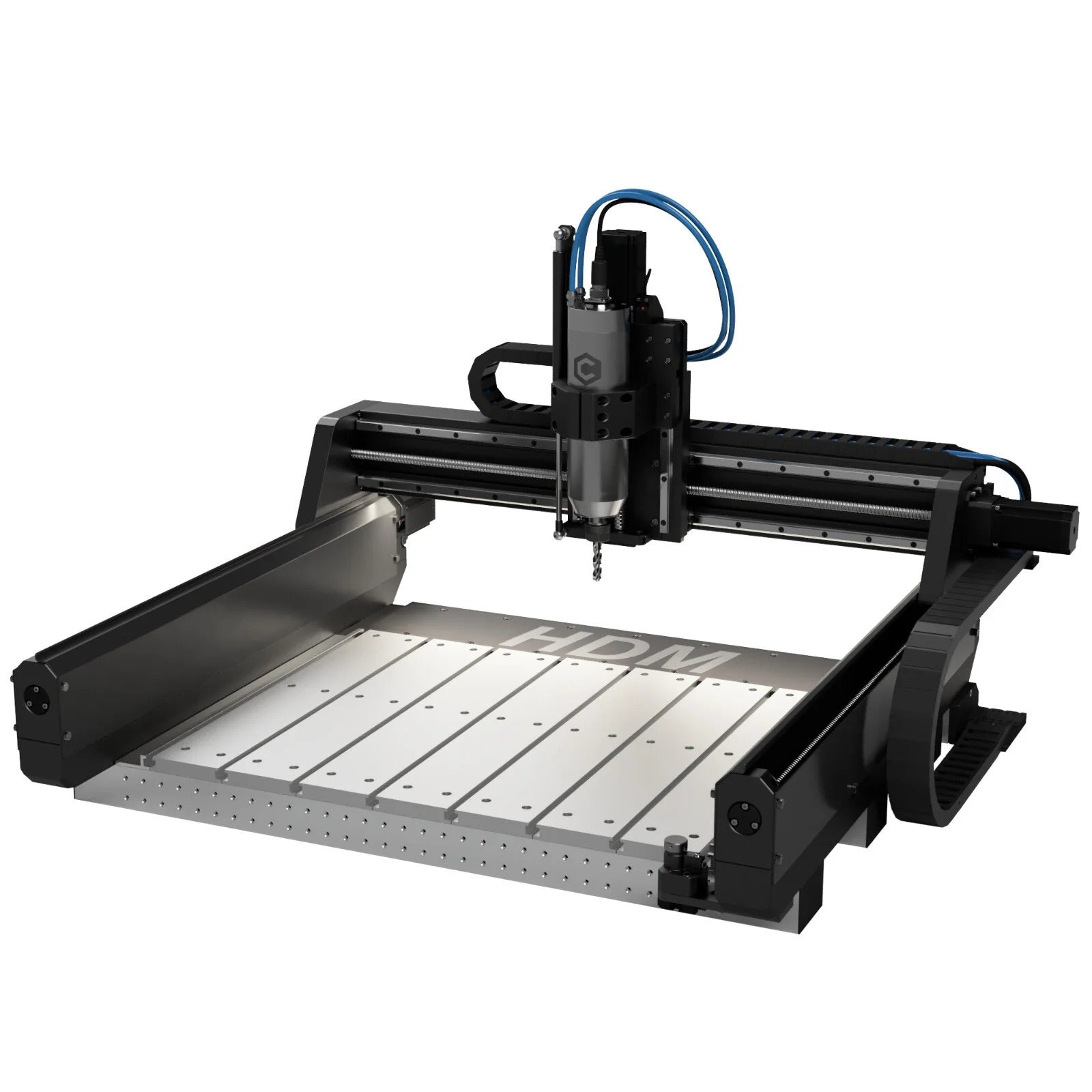

From its solid Hybrid T-Slot Table to its custom aluminum frame, every detail of the HDM is optimized for strength and accuracy. Each extrusion is precision-machined and locally anodized for a perfect fit, while 30 mm thick aluminum end plates add further rigidity.
This robust construction eliminates flex and vibration, even under heavy cutting loads—ensuring clean edges, smooth finishes, and perfect repeatability.

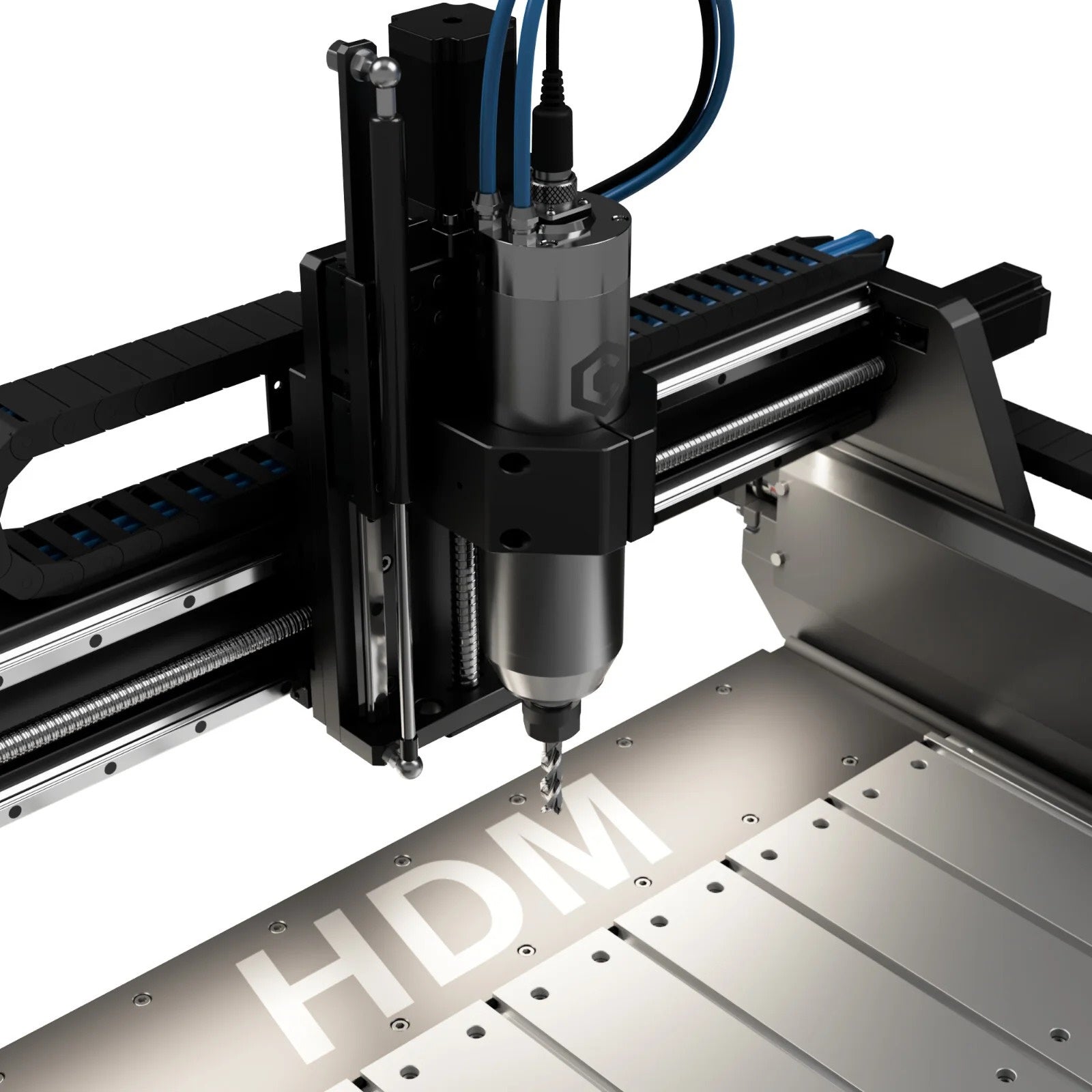

The Shapeoko HDM’s motion system pairs HG-15 linear rails with 16 mm ball screws on every axis. Dual angular-contact bearings provide rigidity and low friction, while custom wipers keep dust and debris out of critical components.
This design results in extremely precise motion with virtually no backlash, letting you translate spindle power directly into material removal—ideal for detailed engraving, deep aluminum cutting, and professional-grade part production.

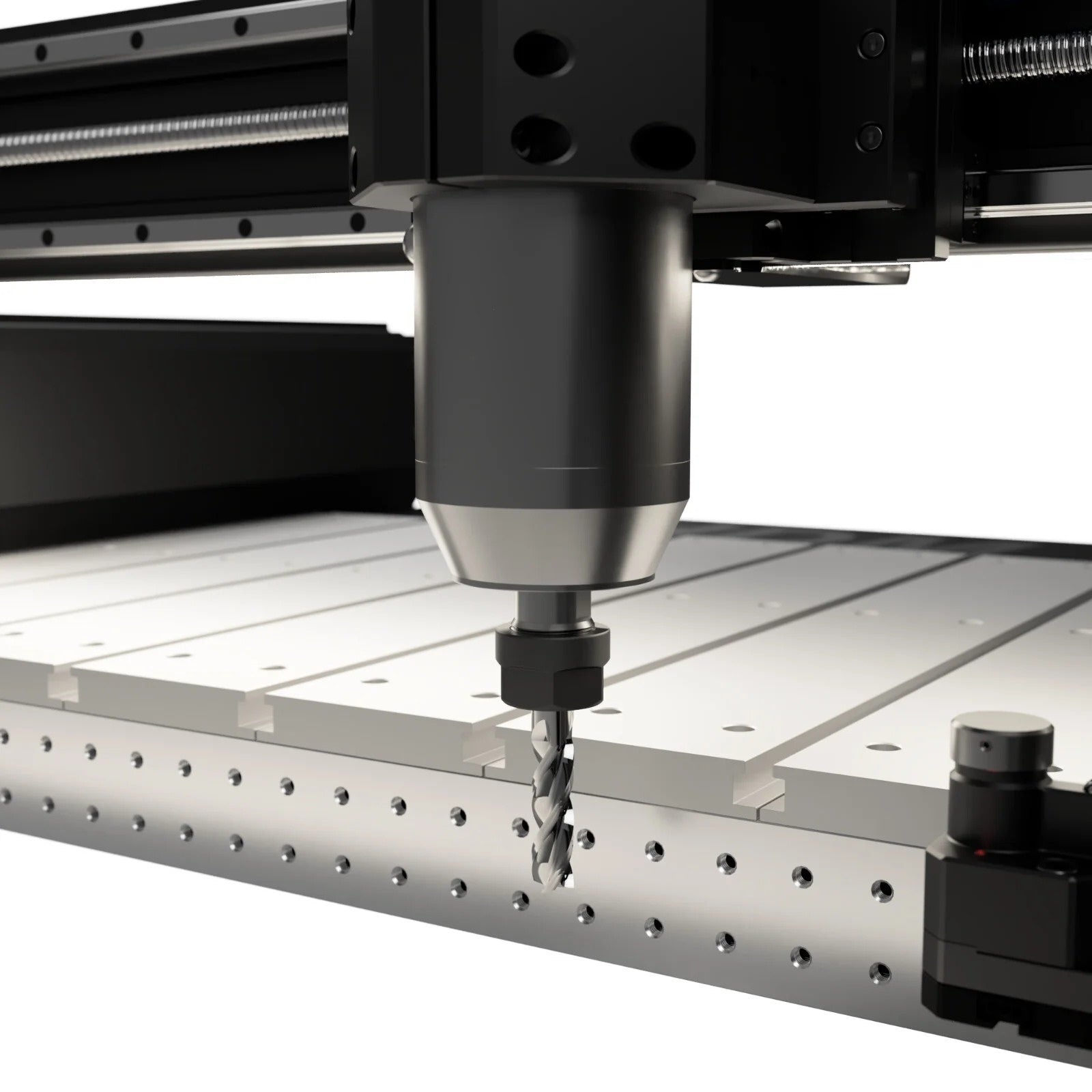

The HDM’s 4-pole, 80 mm water-cooled spindle delivers quiet, reliable performance hour after hour. Controlled by a custom VFD interface, the spindle automatically adjusts RPM via G-code, so there’s no need to manually start or set speeds.
This system ensures smooth operation, low noise, and long spindle life—ideal for both fine detail work and heavy-duty milling.
Everything you need for professional-grade CNC machining comes in one complete package — no add-ons required.
1. What materials can the Shapeoko HDM cut?
Hardwoods, MDF, plastics, acrylic, composites, carbon fiber, and non-ferrous metals such as aluminum and brass.
2. How accurate is the HDM?
With 0.01 mm runout and industrial-grade motion components, it delivers exceptional accuracy and repeatability across all materials.
3. Can it run continuously?
Yes — the HDM’s water-cooled spindle and ball-screw system are designed for long, uninterrupted operation.
4. What software is included?
You’ll receive Carbide Create (for CAD/CAM design) and Carbide Motion (for machine control), both optimized for Shapeoko machines.
5. Is training provided?
Yes — four personalized 30-minute sessions with Carbide 3D experts are included to help you start cutting confidently.
| Specifications | Details |
|---|---|
| X-Axis Travel | 690 mm (27 in) |
| Y-Axis Travel | 610 mm (24 in, 75 mm over front) |
| Z-Axis Travel | 145 mm (5.7 in) |
| Z Clearance (Gantry) | 145 mm |
| Table Width (X) | 795 mm |
| Table Depth (Y) | 539.5 mm |
| Machine Width | 1063 mm |
| Machine Depth | 961 mm |
| Machine Weight | 120 kg |
| Spindle RPM Range | 8 000 – 24 000 RPM |
| Spindle Power | 1.5 kW (110 V) / 2.2 kW (220 V) |
| Collet Type | ER-20 |
| Maximum Tool Diameter | 13 mm (½″) |
| Runout | 0.01 mm |
| Cooling System | CW-3000, 9 L capacity |
| Rapid Traverse (X/Y/Z) | 5000 mm/min |
| Max Cutting Feed Rate (X/Y/Z) | 5000 mm/min |
| Power Requirements | 2 × 110 V outlets (chiller + electronics), 1 × 15 A outlet (spindle) |
Click the links below to download product manuals for the Shapeoko HDM CNC Router
Shapeoko HDM CNC Router Product Manual Downloads:
| Shapeoko HDM CNC Router Product Manual Download |
|
