Unlock your creative potential with the Monport 100W Built-in Chiller CO2 Laser Engraver & Cutter - the ultimate precision tool for all your engraving and cutting needs.

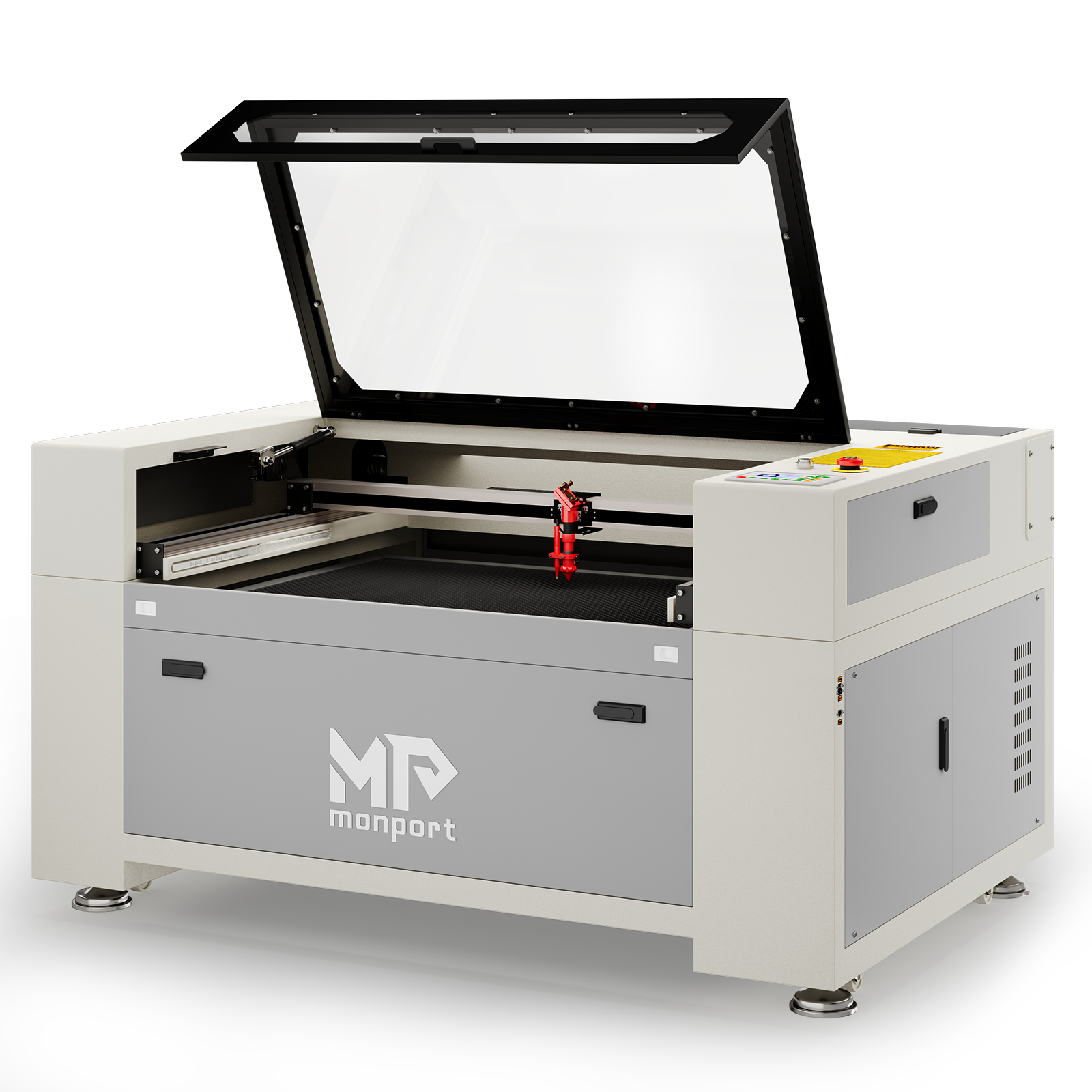

Introducing the Monport Industrial CO2 Laser Engraver & Cutter 100W, a robust and versatile machine designed for industrial-level engraving and cutting. With a large working area of 40" x 24" and a built-in chiller, this laser engraver delivers unmatched precision and speed, making it the ideal choice for professional projects.
Compatible Materials:
|
![]()
Wood
|
MDF / Plywood
|
Leather
|
Plastics
|
Fabric
|
Stone
|
Coated Metals
|
Glass
|
![]()
![]()
Revolutionize your workshop with the Monport 100W Built-in Chiller CO2 Laser Engraver & Cutter. This versatile, high-performance machine is the perfect addition for small businesses, hobbyists, and anyone seeking to unleash their creative potential.
-
100W CO2 laser for high-speed, high-resolution performance

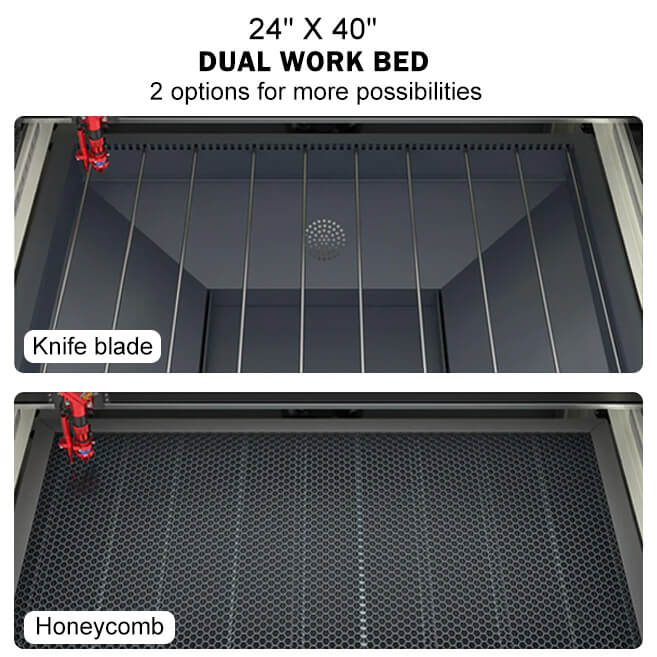

- Oversized 40" x 24" work area for larger projects
-
Autofocus and enclosed rail system for consistent, debris-free results
-
Ruida digital controller works seamlessly with popular design software
-
Built-in air assist and safety features for a worry-free workflow
Whether you're etching intricate designs on wood, cutting complex shapes from acrylic, or engraving personalized gifts, the Monport 100W Laser Engraver & Cutter is your ultimate creative companion. Unlock your full potential and elevate your projects to new heights.
Powerful Cutting and Engraving Performance
The Monport 100W CO2 Laser offers exceptional cutting and engraving capabilities. With a maximum cutting speed of 30mm/s and an engraving speed of up to 800mm/s, you can achieve intricate designs with ease. The 19.05mm engraving depth ensures you can handle various materials, including wood, acrylic, and stone, while maintaining consistent quality and precision.
Advanced Autofocus and High Resolution
This engraver features an automatic focus adjustment system, allowing you to optimize the laser for any material at the touch of a button—no more manual focus testing. Combined with a resolution of up to 4500 dpi and a 2.0" focal distance, the Monport CO2 laser engraver delivers razor-sharp detail, making it perfect for engraving tiny fonts and complex designs.
Safety and Durability Features

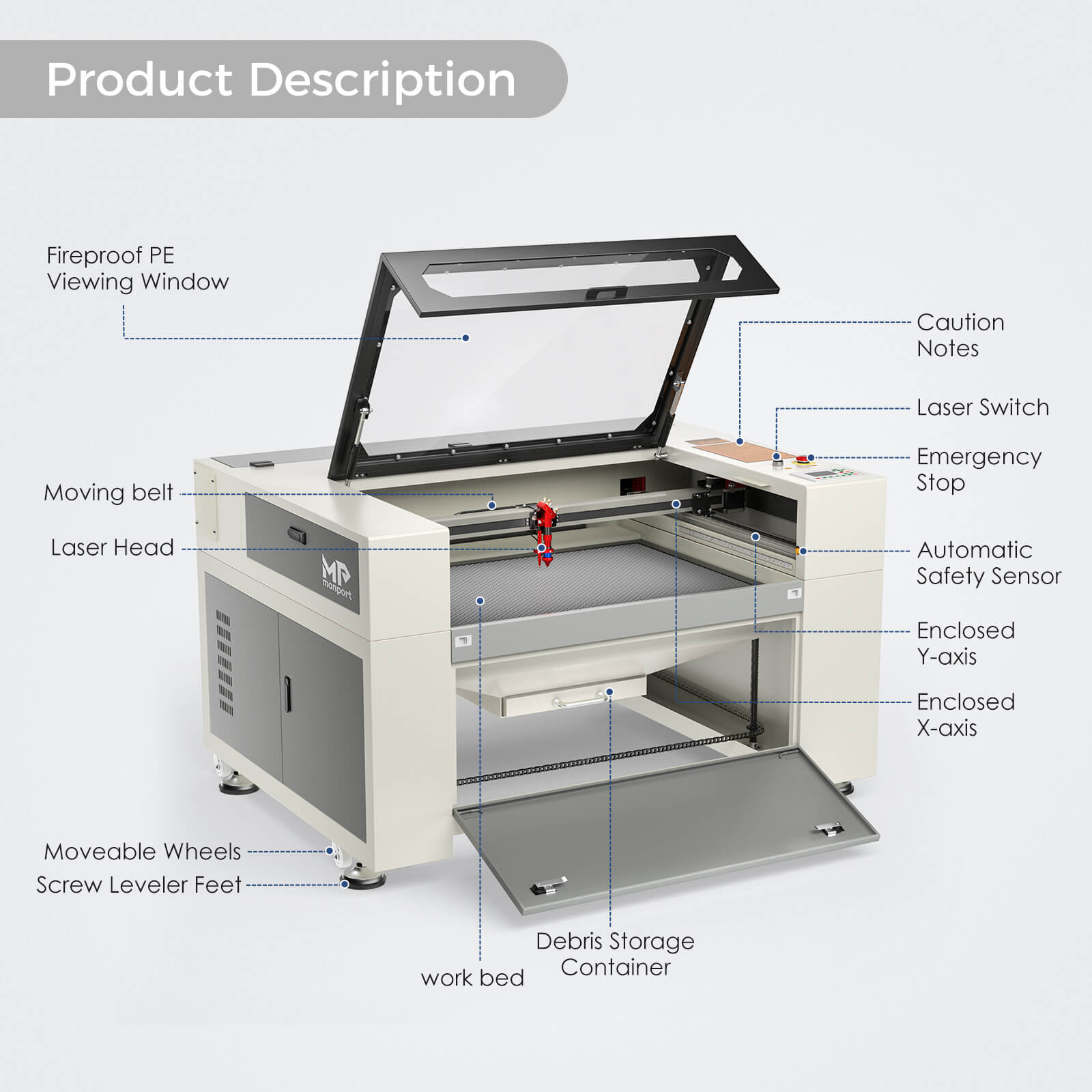

Equipped with a fireproof viewing window made from high-temperature-resistant polyester and iron frames, this machine significantly reduces the risk of fire accidents. Additionally, it includes protective laser glasses and an automatic safety sensor that halts operation if the window cover is open, ensuring a safe and controlled working environment.
Built-in Air Assist and Red Dot Guidance
The built-in air assist system enhances precision by blowing away debris, heat, and gases from the engraving surface. This ensures cleaner cuts and improved laser accuracy. The red dot guidance feature helps mark the laser head’s position and frame the project size, giving you full control over your work.
Easy Connectivity and Control
The Ruida digital controller supports popular design software such as LightBurn, AutoCAD, and CorelDRAW. With USB and Ethernet connectivity, you can effortlessly connect the machine to your computer for seamless operation. The user-friendly control panel lets you adjust laser power, speed, and other settings to match the material requirements.
Specifications and Features
-
Model: Monport Industrial CO2 Laser
-
Laser Type: Industrial CO2 Laser
-
Output Power (W): 100W
-
Max Engraving Speed: 800mm/s
-
Machine Dimension: 72.8" x 55" x 35"( 185cm x 140cm x 90cm )
-
Working Dimension: 35” x 55” (90 cm x 137 cm)
-
Pass-through Dimension: 2.9" x 54.9" ( 7.5 cm x 140 cm )
-
Max Engraving Depth: 19.05mm
-
Min Engraving Depth: 0.01mm
-
Focal Lens Diameter: 18mm
-
Mirror Diameter: 25mm
-
Max Z-depth: 7''
-
Package Dimension: 67.7” x 48.4” x 43.7” ( 172 cm x 123 cm x 111 cm )
-
Net Weight: 639.3 lbs ( 290 kg )

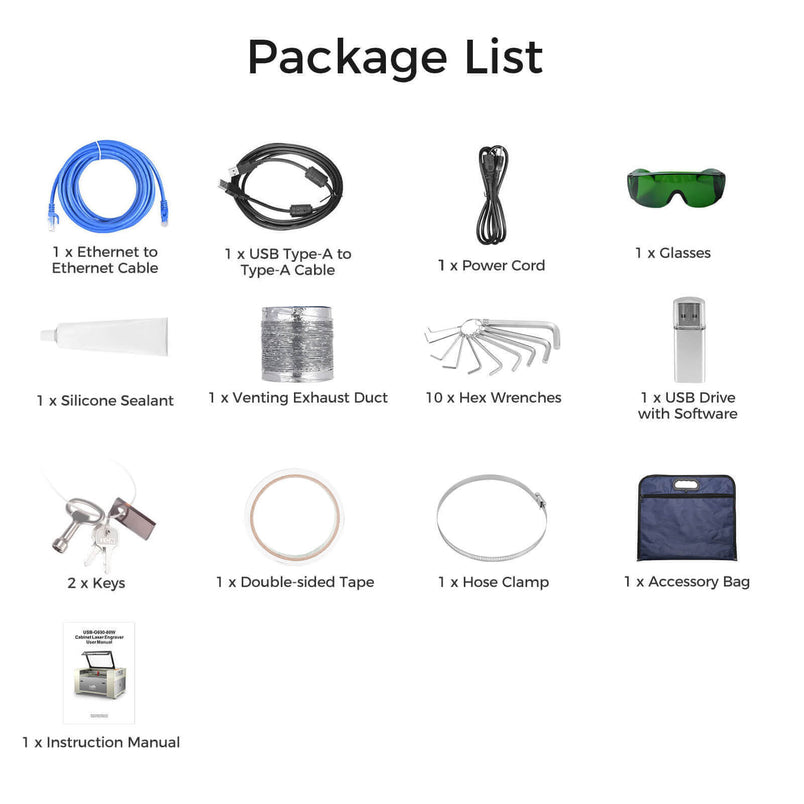

What's Included:
- Laser Engraver Machine *1
- A Pair of Laser Protective Glasses *1
- Accessory Bag *1
- Ethernet to Ethernet Cable *1
- USB Type-A to Type-A Cable *1
- Venting Exhaust Duct *1
- USB Drive with Software (RDworks) *1
- Hex Wrenches *10
- Double-sided Tape *1
- Power Cord *2
- Keys *2
- Silicone Sealant *1
- Stainless Steel Clamp *1
- Instruction Manual *1
Frequently Asked Questions About Monport Industrial 100W CO2 Laser Engraver & Cutter
What materials can the Monport 100W CO2 Laser Engraver cut and engrave?
The Monport Industrial 100W CO2 Laser Engraver can cut and engrave a variety of non-metal materials, including wood, acrylic, leather, glass, rubber, and fabric. It is also capable of engraving certain coated metals, though pure metal cutting requires a fiber laser. This versatility makes it an excellent choice for applications in signage, arts and crafts, and industrial design.
How thick of a material can the Monport 100W CO2 Laser Engraver cut?
This powerful 100W laser can cut through materials up to 12mm (approximately 0.47 inches) thick, depending on the type and density of the material. For materials like wood and acrylic, cutting thickness may vary slightly based on speed and power settings.
Is the Monport 100W CO2 Laser Engraver compatible with popular design software?
Yes, the Monport 100W CO2 Laser Engraver is compatible with leading design software, including LightBurn and LaserGRBL. It supports common file formats like DXF, JPG, BMP, and AI, allowing users to work with their preferred software for design flexibility and precision.
What are the safety features on the Monport 100W CO2 Laser Engraver?
The Monport 100W CO2 Laser Engraver is equipped with essential safety features, including an emergency stop button, a protective casing to contain laser emissions, and a built-in exhaust system to manage fumes and smoke. Additionally, users are encouraged to wear safety goggles and operate the engraver in a well-ventilated area to maintain a safe work environment.
How does the built-in air assist work on the Monport 100W CO2 Laser Engraver?
The built-in air assist directs a steady airflow onto the material being engraved or cut, reducing smoke and preventing excessive charring or burning. This ensures clean edges and precise cuts, especially on flammable materials like wood, and helps maintain the clarity and quality of engravings.
How easy is it to set up and operate the Monport 100W CO2 Laser Engraver?
The Monport 100W CO2 Laser Engraver is designed for efficient setup and operation. Its plug-and-play design allows users to start quickly, and an intuitive control panel makes it easy to adjust settings. The machine’s included instructions guide users through setup, making it accessible to beginners and experienced engravers alike.
What maintenance is required for the Monport 100W CO2 Laser Engraver?

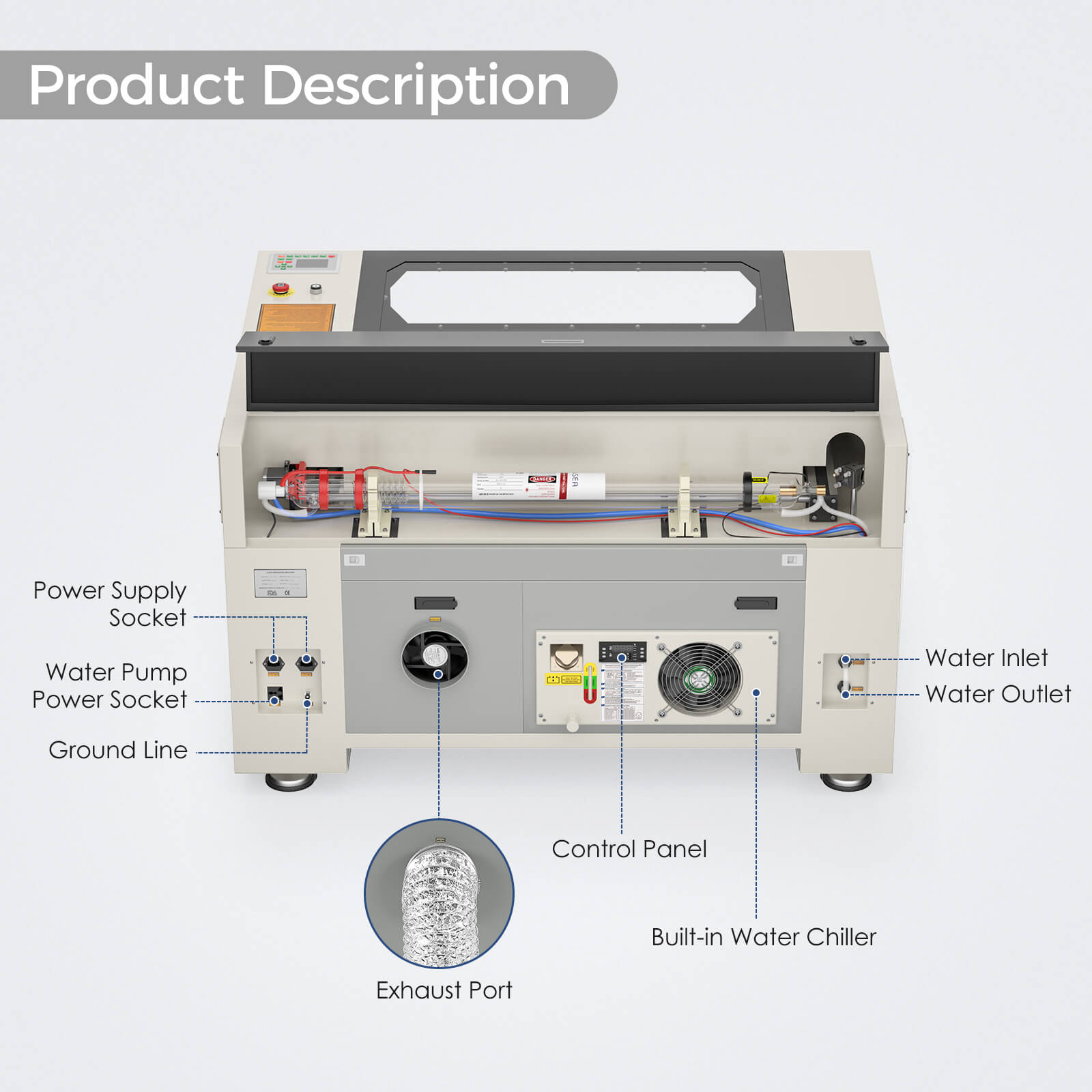

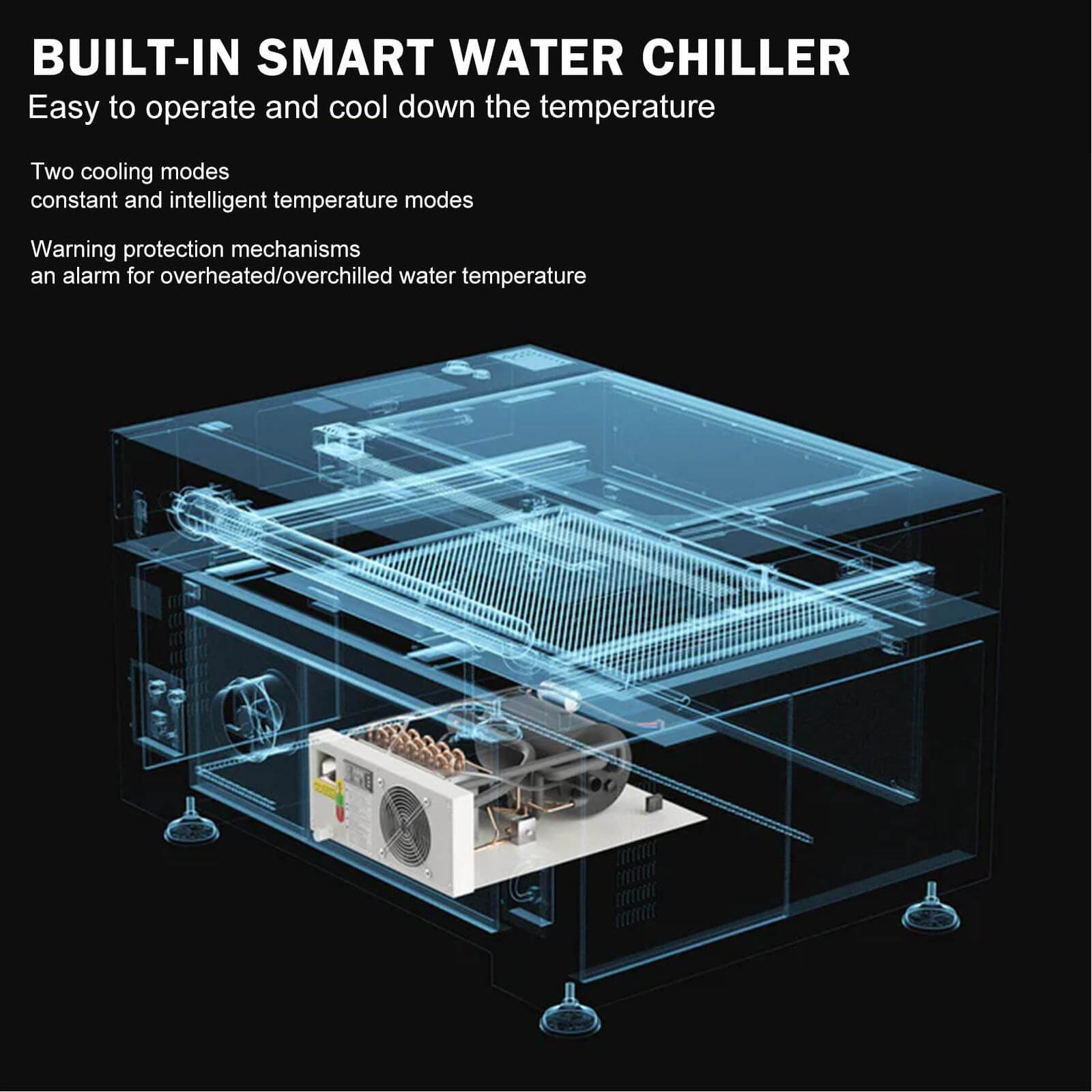

Regular maintenance for the Monport 100W CO2 Laser Engraver includes cleaning the lens, mirrors, and work area to prevent dust buildup. The water cooling system should also be monitored to ensure the laser tube remains within safe operating temperatures. With proper care, this laser engraver provides consistent, long-term performance for a variety of projects.
